Fabbrica · Shotgun
Fabarm Axis
Break action · 12 Gauge · introduced 2014
Also known as Fabarm Axis RS12, Fabarm Axis RS20
About the Fabarm Axis
The Fabarm Axis is an Italian over-and-under competition shotgun chambered in 12 gauge, built by FABARM of Brescia for sporting clays and trap disciplines. It pairs FABARM's Tribore HP barrel profile with a low-profile steel monobloc action, automatic ejectors, a single selective trigger and interchangeable choke tubes, and is typically supplied with 28-inch or 30-inch barrels and an adjustable walnut stock.
FABARM, the Fabbrica Bresciana Armi, has built shotguns in Italy's Brescia gunmaking district since 1900 and developed the Axis as a dedicated clay-target over-under around its proprietary Tribore HP barrel geometry.
Fabarm Axis specifications
General
- Type
- Shotgun
- Action
- Break action
- Firing mechanism
- Hammer-fired
- Trigger
- Single selective
- Calibres
- 12 Gauge
- Magazine capacity
- 2 rounds
Dimensions
- Barrel length
- 762 mm (30.0 in)
- Overall length
- 1200 mm (47.2 in)
- Weight (empty)
- 3.40 kg (7.50 lb)
Barrel
- Rifling
- Smoothbore
Materials
- Barrel
- Steel
- Receiver / frame
- Steel
- Stock
- Walnut
- Finish
- blued
Performance
- Muzzle velocity (typical)
- 400 m/s (1312 fps)
- Effective range
- 40 m
History
- Introduced
- 2014
- Production status
- In production
- Country of origin
- IT
Features
- Over under barrels
- Tribore hp barrels
- Automatic ejectors
- Single selective trigger
- Interchangeable chokes
- Ventilated rib
Safety
- Manual safety
- Barrel selector
Marketed in sporting (RS12) and trap (RS20) configurations. Barrel lengths commonly offered in 28 in (711 mm) and 30 in (762 mm); the listed barrel length reflects the 30-inch competition option.
Similar models
ATA SP
Break action · 12 Gauge

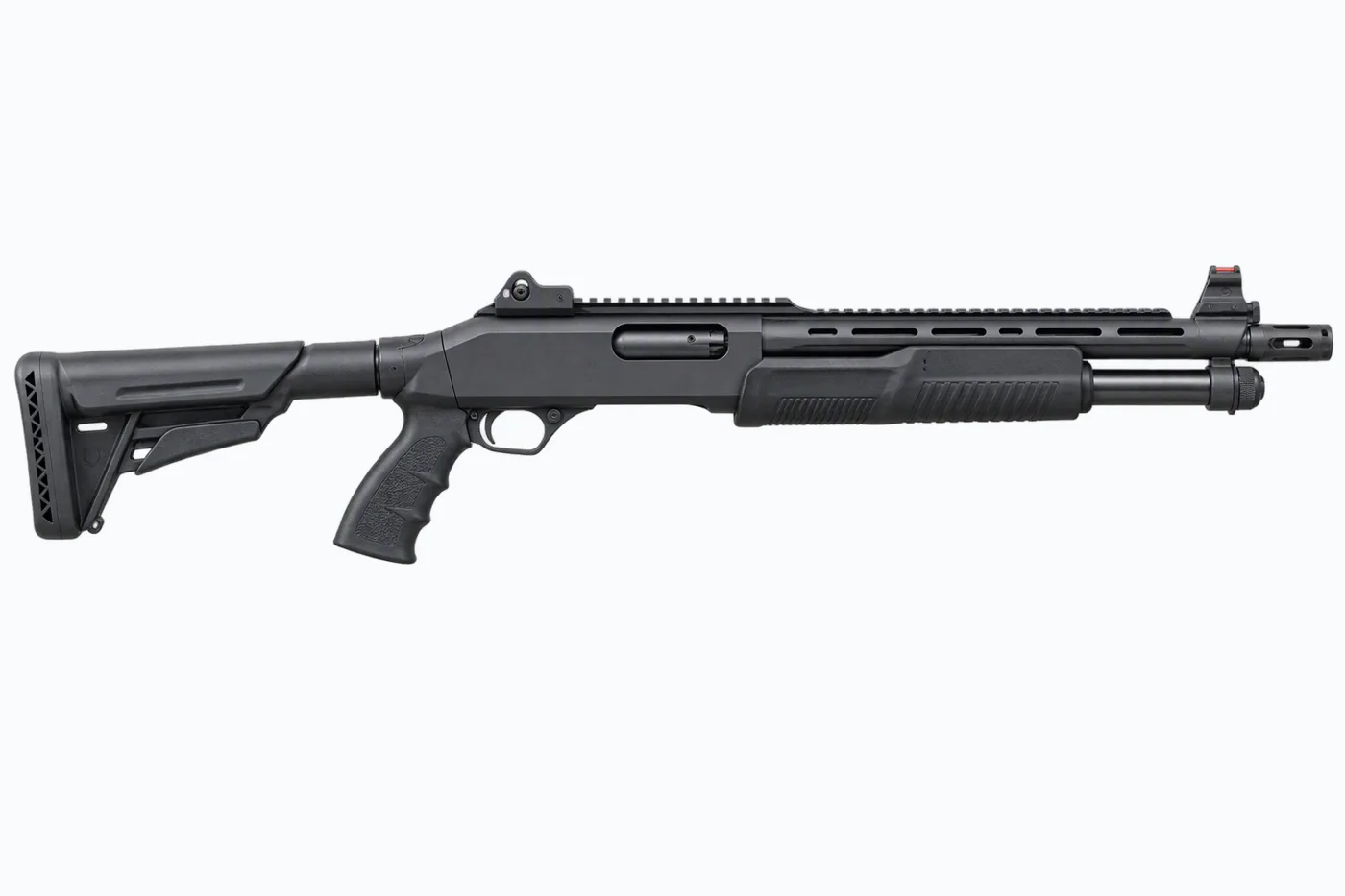

FABARM STF/12
Pump action · 12 Gauge

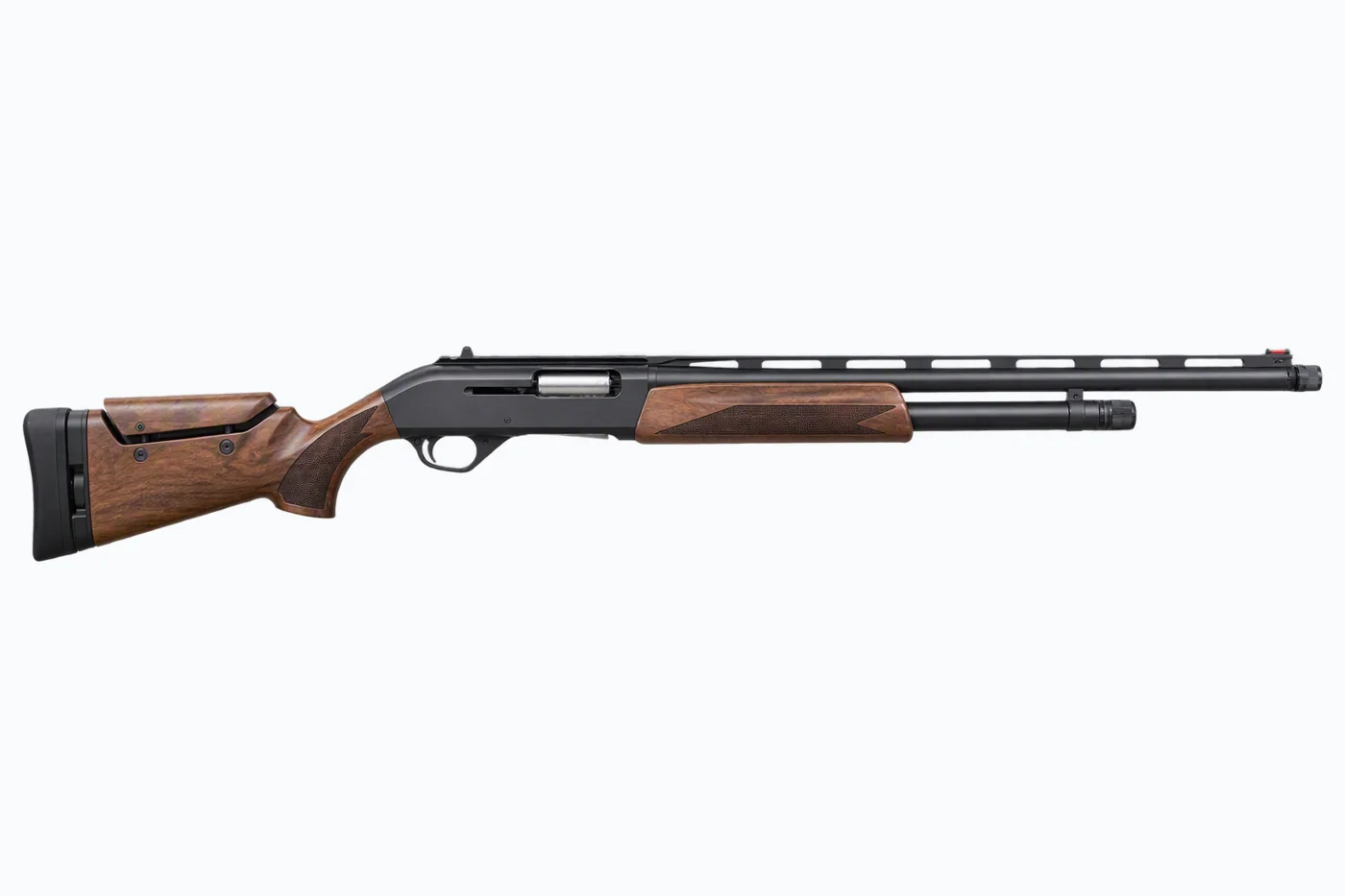

FABARM XLR5
Gas operated short stroke · 12 Gauge

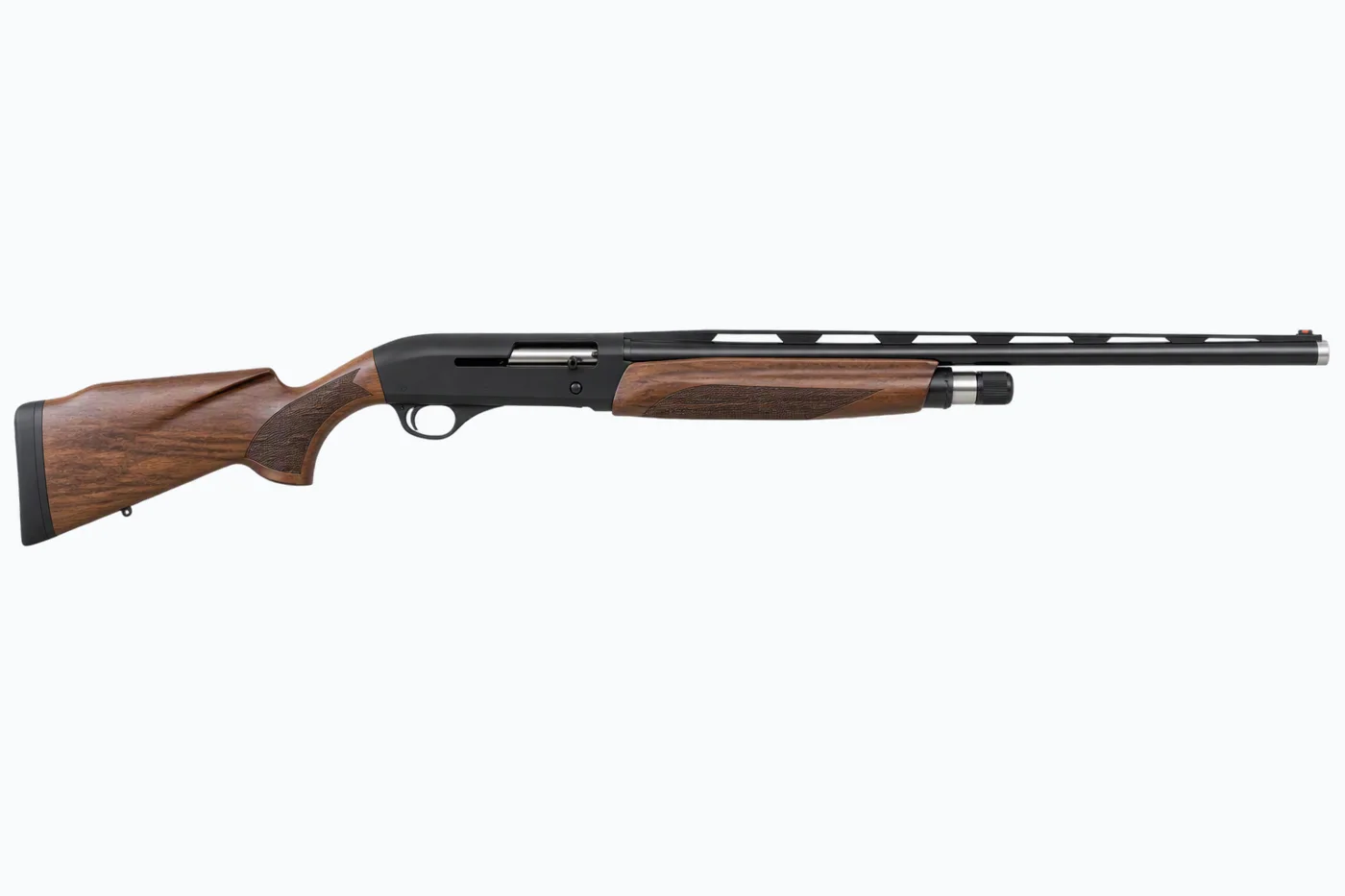

Fabarm L4S
Gas-operated · 12 Gauge

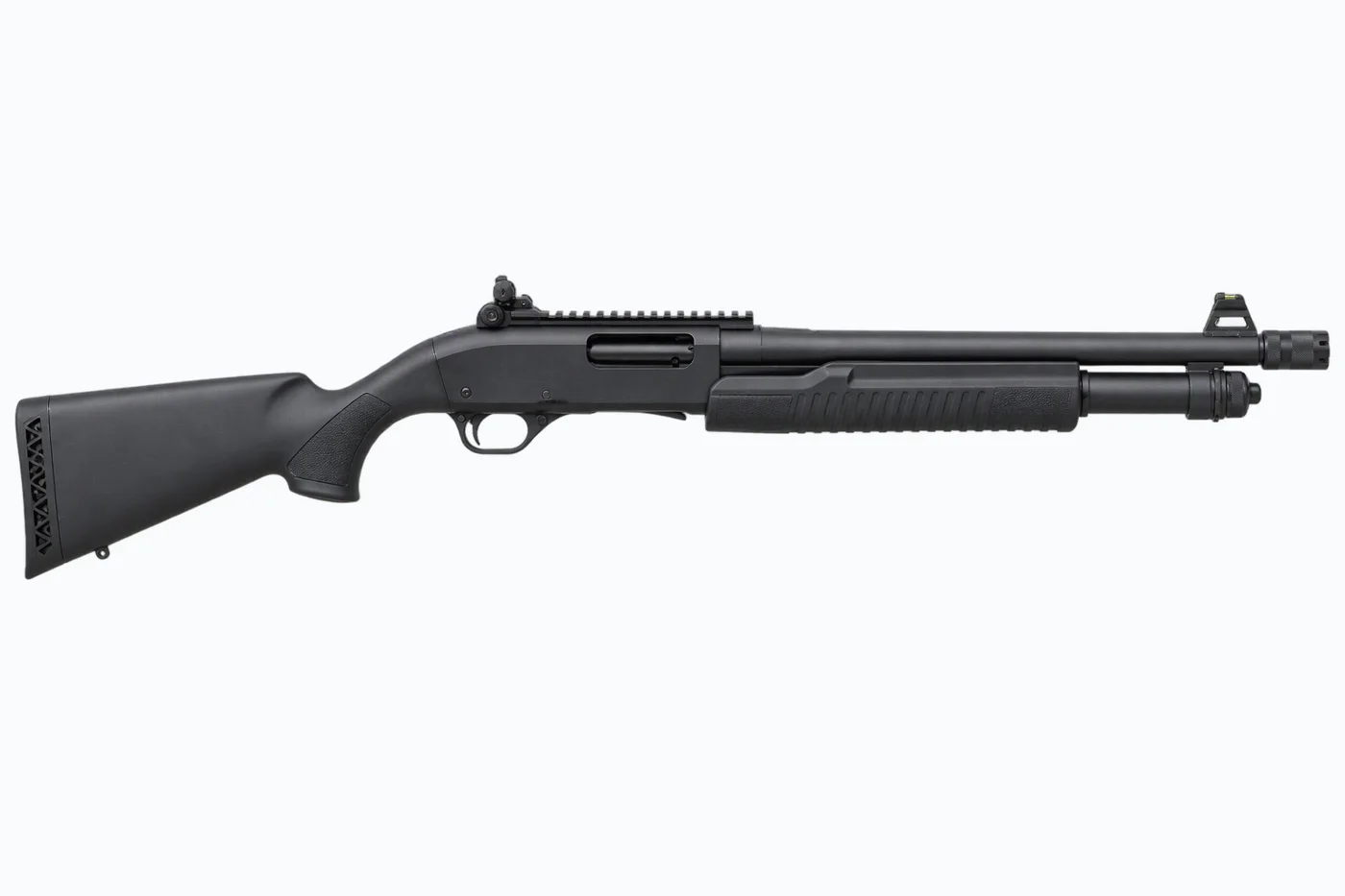

Fabarm SDASS Tactical
