Marlin · Rifle
Marlin XT-22
Bolt action · .22 Long Rifle · introduced 2011
Also known as Marlin XT Series, XT-22R, XT-22YR
About the Marlin XT-22

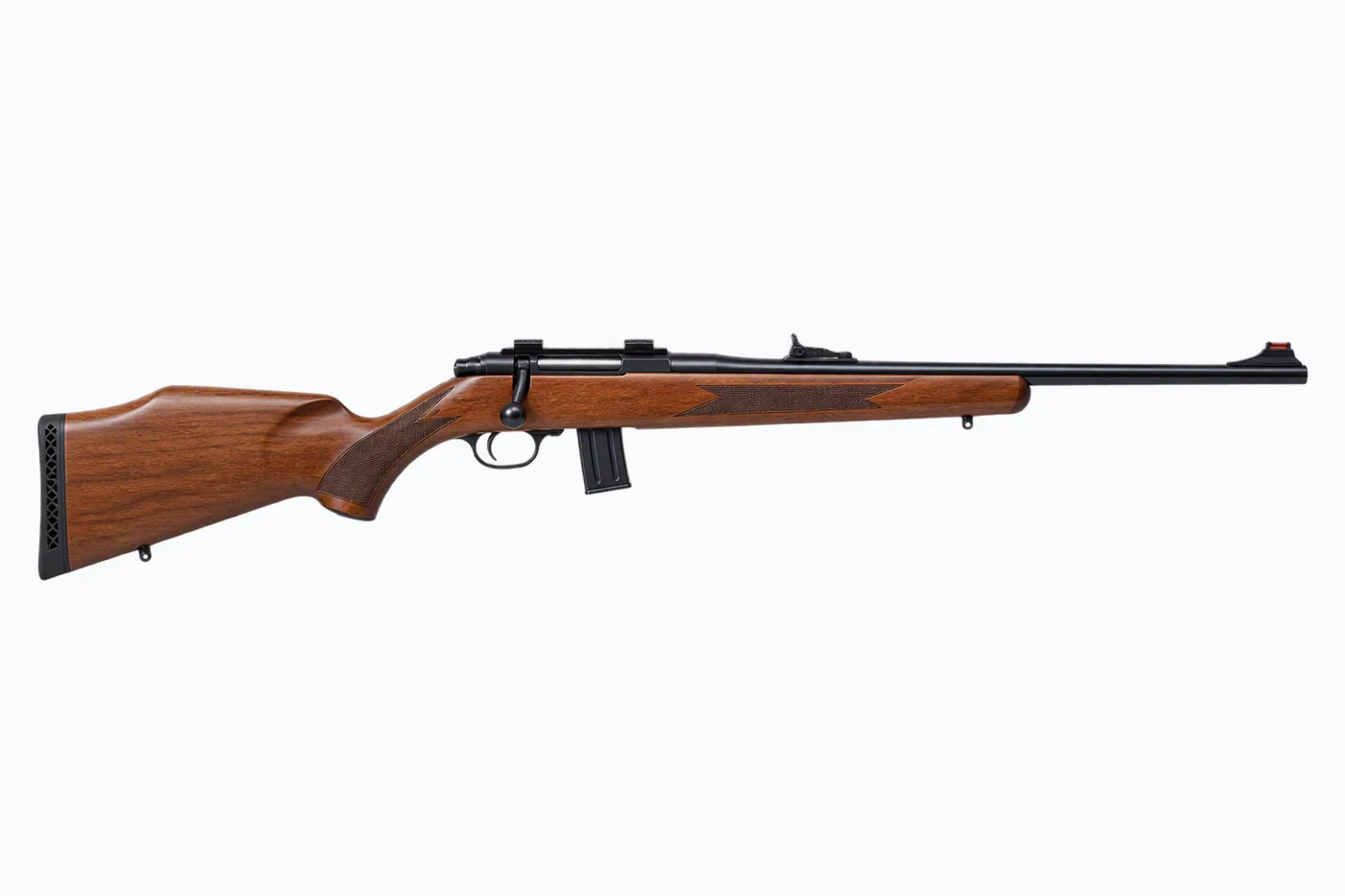

The Marlin XT-22 is an American bolt-action rimfire rifle introduced in 2011 as the .22 Long Rifle member of Marlin's XT family, which also included .22 WMR (XT-22M) and .17 HMR (XT-17) chamberings. It pairs a 16-groove Micro-Groove rifled barrel with a Pro-Fire user-adjustable trigger, a red cocking indicator, a walnut-finished hardwood Monte Carlo stock, and a receiver that is grooved and drilled-and-tapped for scope mounting. The XT-22 feeds from interchangeable detachable box magazines (some variants accept tubular magazines), with the standard rifle using a 22-inch barrel and weighing about 6 lb. Accurate and affordable, the XT series was Marlin's modern bolt-action rimfire line until production ceased with Remington's 2020 bankruptcy.
The XT line was Marlin's early-2010s attempt to modernize its bolt-action rimfire range with an adjustable Pro-Fire trigger and interchangeable magazines, just before the brand's North Haven plant closed and production moved under Remington.
Marlin XT-22 specifications
General
- Type
- Rifle
- Action
- Bolt action
- Firing mechanism
- Striker-fired
- Trigger
- Single stage
- Calibres
- .22 Long Rifle, .17 Hornady Magnum Rimfire, .22 WMR
- Magazine capacity
- 7 rounds
- Magazine
- Detachable box magazine
Dimensions
- Barrel length
- 559 mm (22.0 in)
- Overall length
- 1041 mm (41.0 in)
- Weight (empty)
- 2.72 kg (6.00 lb)
Barrel
- Rifling twist
- 1:16 in (406 mm)
- Rifling
- Right hand
- Grooves
- 16
Materials
- Barrel
- Steel
- Receiver / frame
- Steel
- Stock
- Wood
- Finish
- blued
Performance
- Muzzle velocity (typical)
- 380 m/s (1247 fps)
- Muzzle energy (typical)
- 175 J (129 ft·lb)
- Effective range
- 100 m
History
- Introduced
- 2011
- Discontinued
- 2020
- Production status
- Discontinued
- Country of origin
- US
- Designer
- Marlin Firearms
Available calibres
Features
- Micro groove rifling
- Pro fire adjustable trigger
- Monte carlo stock
- Grooved receiver for scope
- Drilled and tapped for scope
- Adjustable open rear sight
- Ramp front sight
- Interchangeable magazines
Safety
- Two position safety
- Red cocking indicator
The XT-22 is the .22 LR member of Marlin's XT bolt-action rimfire family; sister models include the XT-22M/MR (.22 WMR) and XT-17 (.17 HMR). Feeds from interchangeable detachable box magazines (commonly 4 or 7 rounds for .22 LR, up to larger capacities) and some variants accept tubular magazines. Standard rifles use a 22-inch (559 mm) barrel and weigh roughly 6 lb (2722 g); the youth XT-22YR has a 16.25-inch barrel and weighs about 4 lb. Equipped with Marlin's Pro-Fire adjustable trigger, a red cocking indicator and a receiver grooved/drilled-and-tapped for optics.
