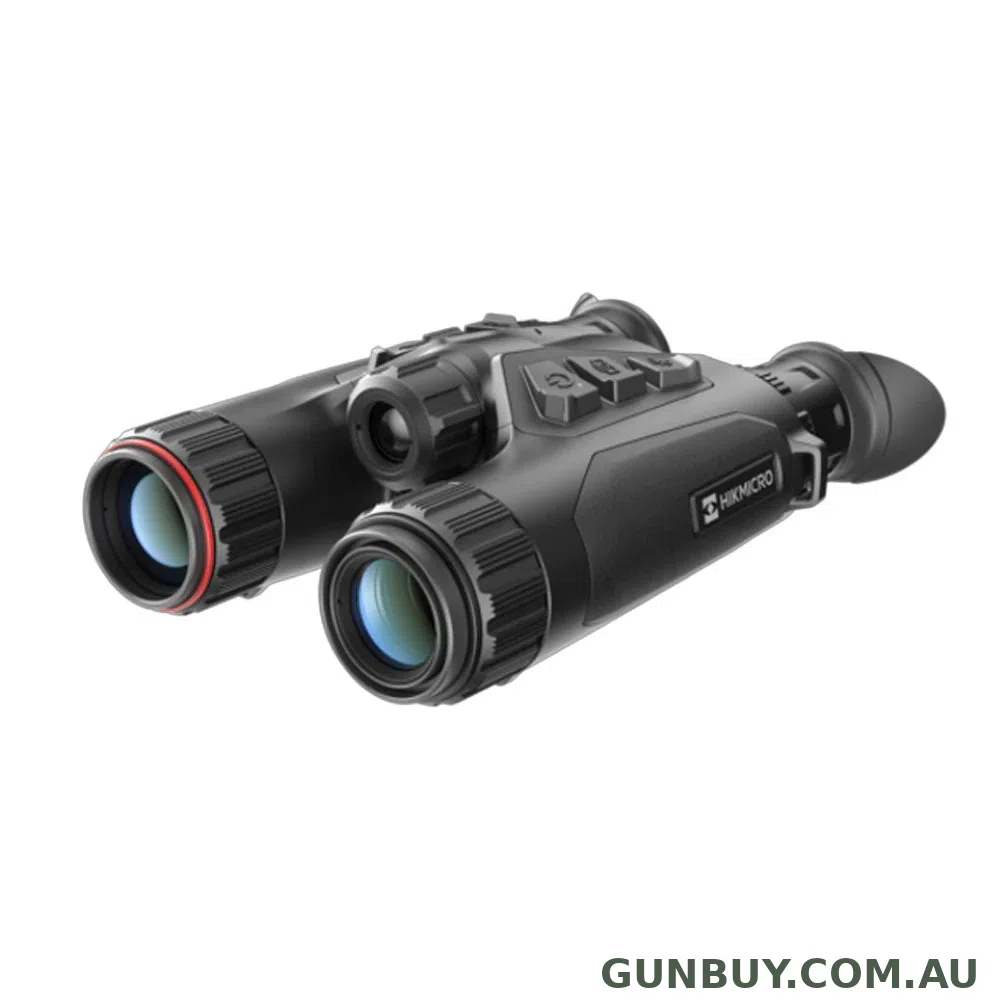

HIKMICRO Habrok 4K HE25L

Description

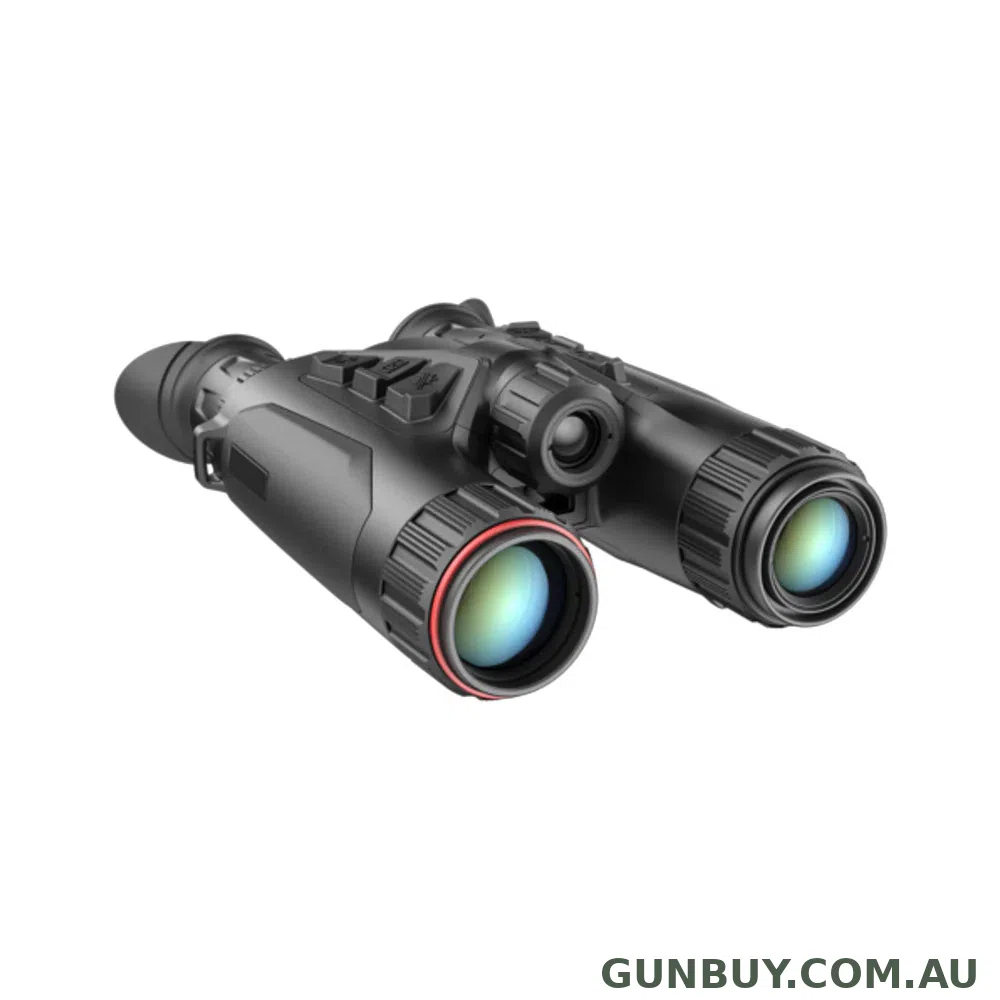

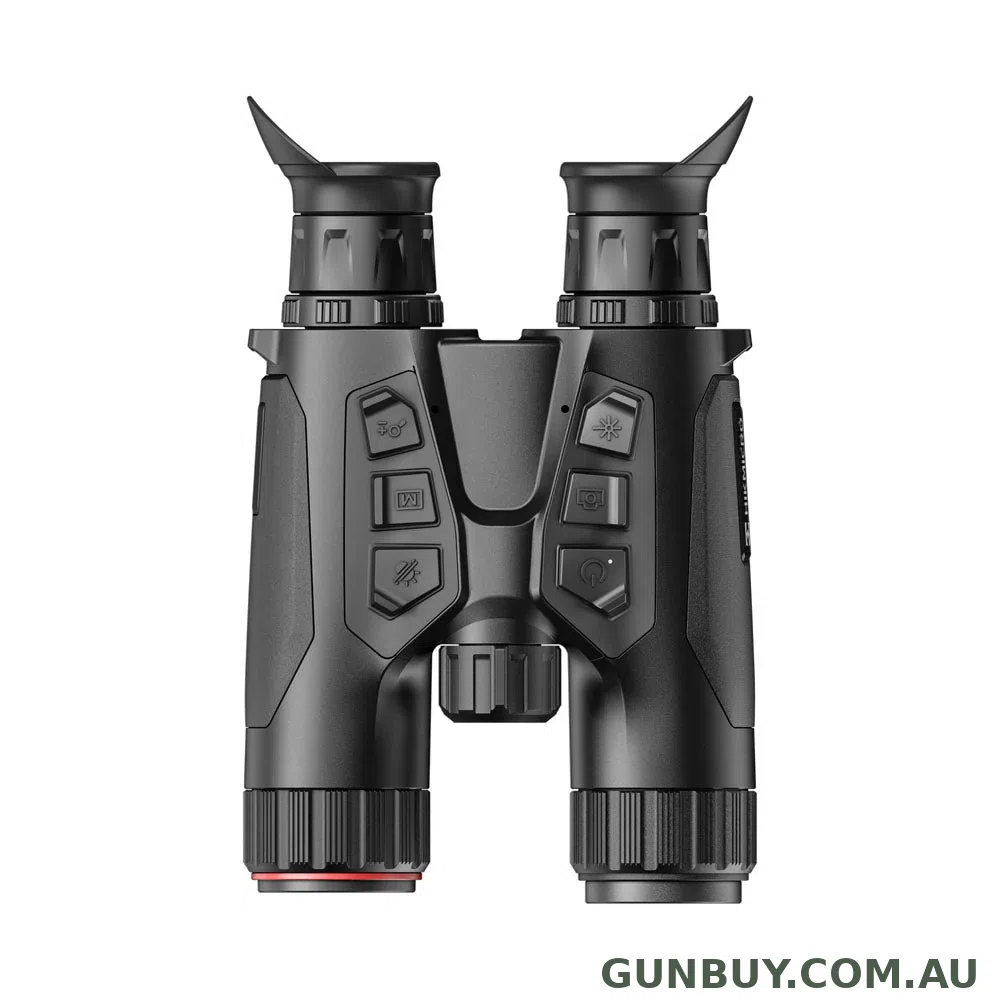

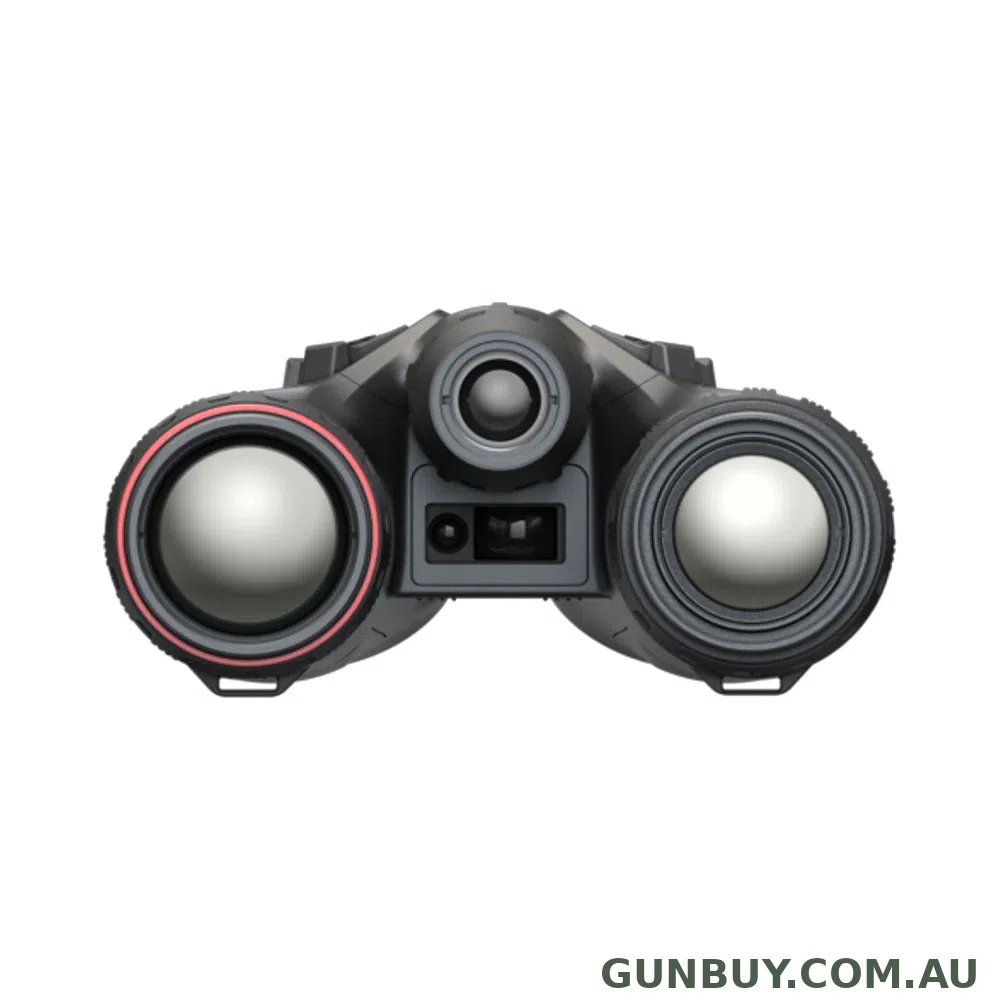

HIKMICRO HABROK 4K HE25L 5.5-22X60 is a powerful and innovative digital and thermal binocular designedespecially for daytime use. Combined with a 256 thermal detector, an advanced 4K digital detector for a 5.5x-22x@60 mm lens, and a 1000 m laser rangefinder, this all-in-one binocular can be mainly applied in forest & fieldhunting, birding, animal searching, adventuring, and rescuing in various weather conditions. Features: 256 x 192 resolution @12 um thermal detector High sensitivity thermal module NETD 35 mK (@25ûC, F# = 1.0) 25 mm, F1.0 lens with thermal detection range up to 1200 m 3840 x 2160 4K ultra high-resolution CMOS detector 60 mm, F2.2 digital lens with 5.5x to 22x digital zoom 1920 x 1080 resolution 0.49-inch OLED display Built-in 850 nm IR illuminator and Laser Rangefinder of 1000 m measuring distance 795 g lightweight, with a compact and ergonomic design Specifications Thermal ModuleImage Sensor: VOx Uncooled Focal Plane ArraysMax. Resolution: 256 x 192Frame Rate: 50 HzPixel Interval: 12 umResponse Waveband: 8 um to 14 umNETD: Less than 35 mK (@25ûC), F# = 1.0Lens (Focal Length): 25 mm, F1.0Focus Mode: Focus RingDetection Range: 1200 mMin. Focusing Distance: 3 mMagnification: 4.3x to 17.2x (4x)Field of View(H x V), Degrees/m @100m: 7.0û x 5.3û/12.2 m x 9.3 m Optical ModuleImage Sensor: 1.88'' Progressive Scan CMOSMax. Resolution: 3840 x 2160Focal Length: 60 mm, F2.2Min. Working Distance: 8 mFocus Mode: Focus RingMagnification: 5.5x to 22.0xî∫4x)Field of View (H x V), Degrees/m @100 m: 6.9ûx 4.1û/12.0 m x 7.2 mSmart IR: YesIR Illuminator Wavelength: 850 nmViewing Range at Night: 400 m Image DisplayDisplay 0.49 inch, OLED, 1920 x1080Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, AutoFFC (Flat Field Correction) Mode: Auto, Manual, External CorrectionExit Pupil: 8 mmEye Relief: 15 mmDiopter (Range): -5 D to +3 DBrightness Adjustment: YesTone Adjustment: Cold, warmContrast Adjustment: YesZoom Pro: Yes SystemRecord Video: YesCapture Snapshot: YesAudio Recording: YesStandby Mode: YesStorage: Built-in EMMC (64 GB)PIP: YesHotspot: YesHot Track: YesDigital Magnetic Compass: YesGPS: YesLocal Album: Yes Power SupplyBattery Type: Replaceable and Rechargeable Li-ion BatteryBattery Operating Time: 8 h (25â, with hotspot off)Type-C Power Supply: 5 VDC, 2 A - Supports External Power Supply GeneralProtection Level: IP67Dimension: 138 mm x 68.2 mm x 223 mm (5.4" x 2.7" x 8.6")Working Temperature: -30â to +55âWeight: 795 g without batteriesInterpupillary Adjustment Range: 60 mm to 74 mmMounting Adapter: 1/4∫-20-UNC Laser RangefinderSafety Class for Laser: Class 1Wavelength: 905 nmMax. Measuring Range: 1000 mMeasurement Accuracy: ±1 mMin. Measuring Range: 10 m

Specifications
