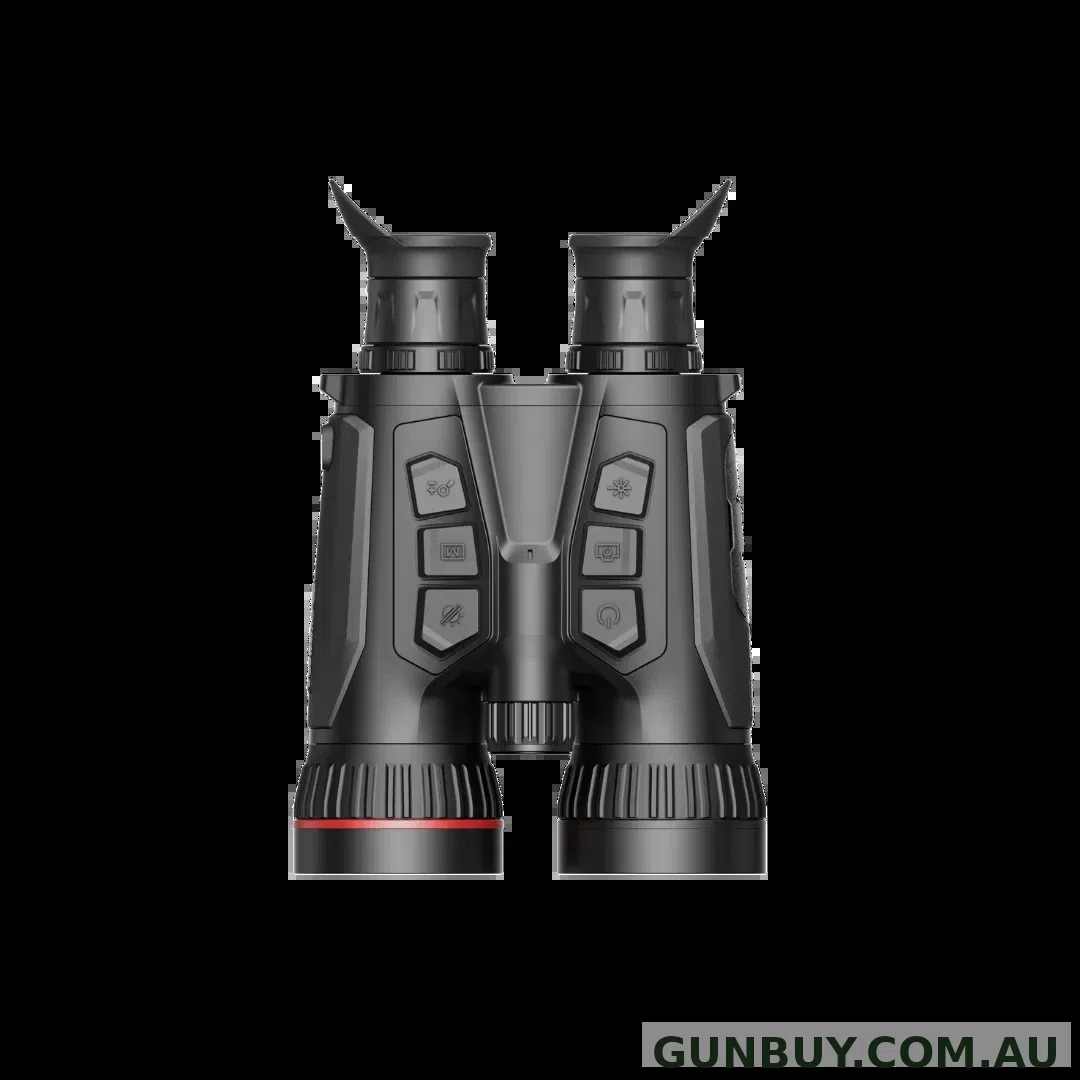

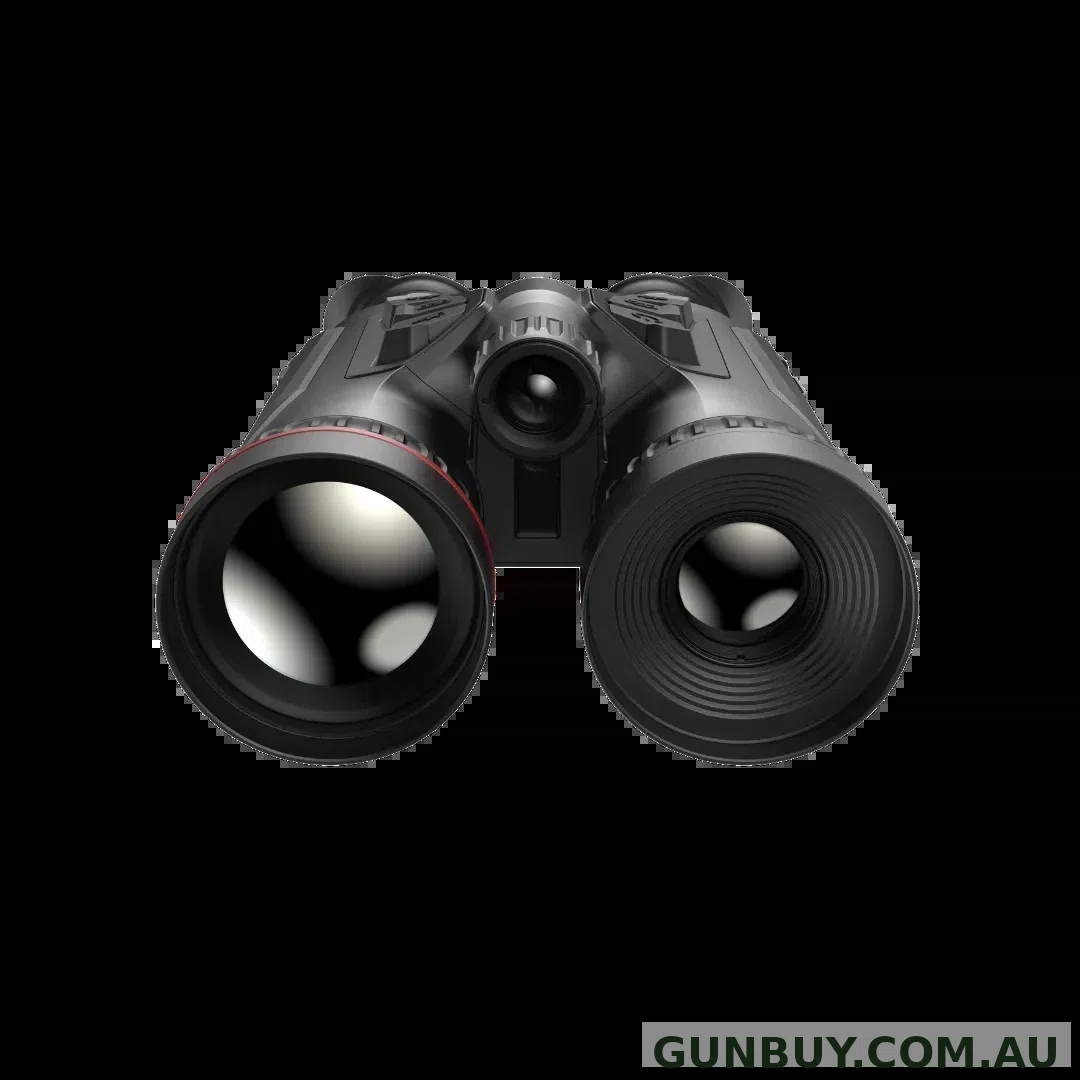

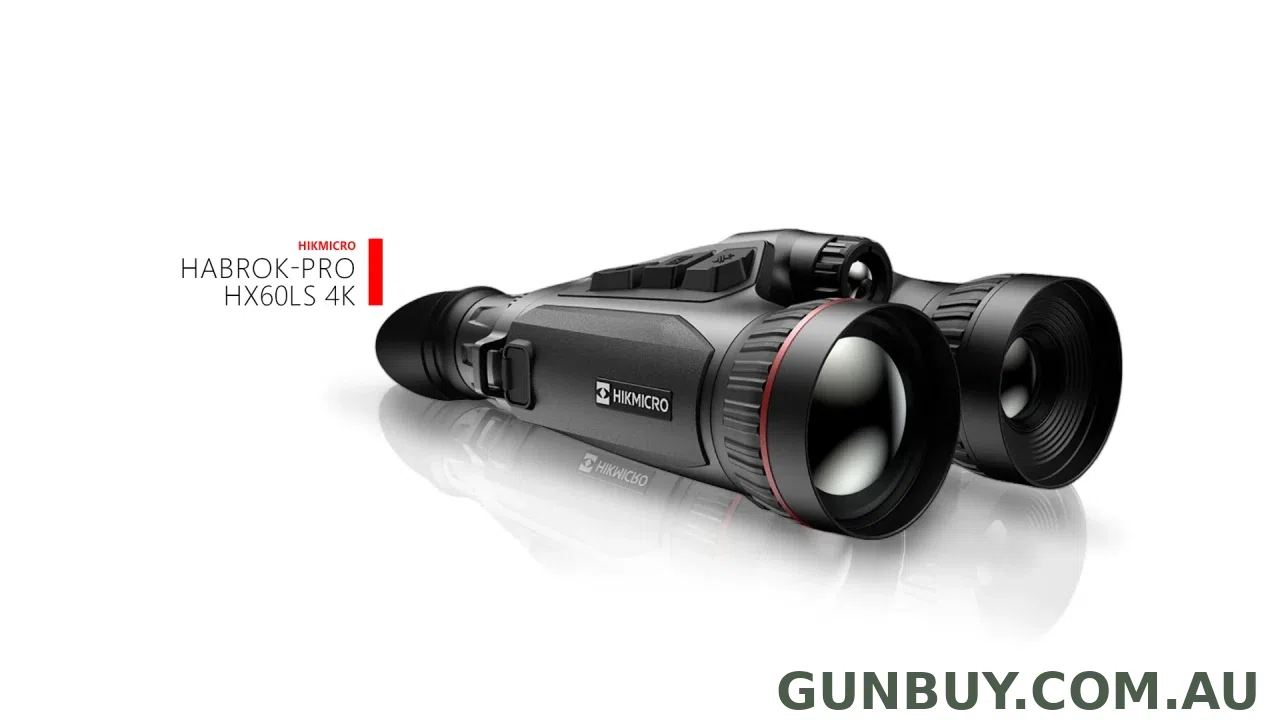

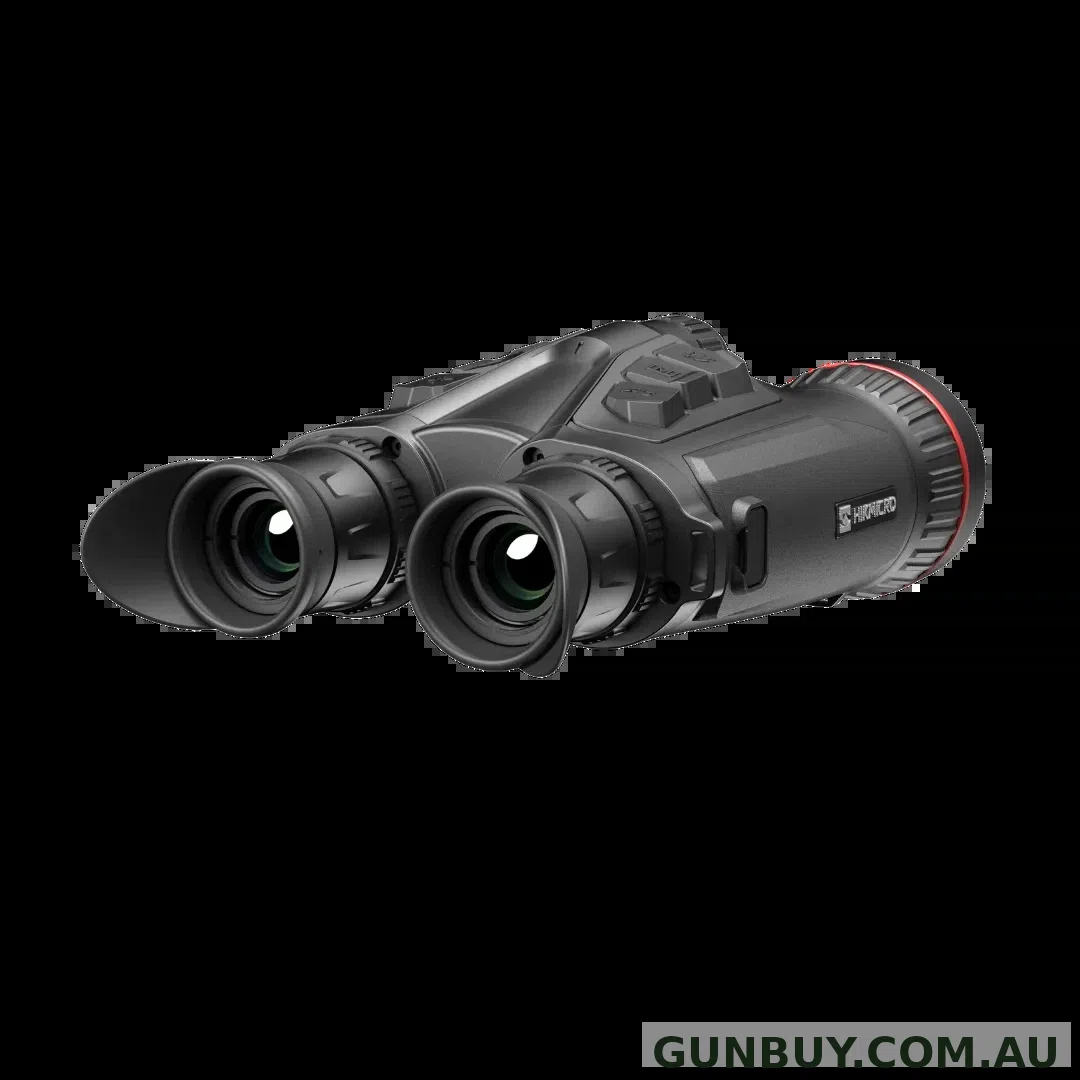

HIKMICRO HABROK 4K HX60LS 50Hz

Description

Description HIKMICRO HABROK Pro HX60LS multi-spectrum binocular is equipped with an 15mK NETD, 1280 × 1024 50Hz thermal detector @60 mm thermal lens and an advanced 4K digital detector with 60 mm lens, ensuring smooth image display, perfect image quality and detail recognition in various weather and light conditions. Combined with a 1000 m Laser rangefinder and replaceable IR emitter @850 nm wavelength, this all-in-one binocular can be applied mainly in forest & field hunting, birding, animal searching, rescuing and marine scenario.   Key Feature ● 1280 × 1024 resolution @12 μm 50 Hz thermal detector ● High sensitivity thermal module NETD ● 60mm, F1.0 lens with thermal detection range up to 3100 m ● 3840 × 2160 4K ultra high-resolution, 60 mm, F2.2 digital camera ● 1920 × 1080 resolution 0.49-inch OLED display ● Replaceable 850 nm IR emitter and 1000 m Laser Rangefinder ● 5.5 h+ continuous operation time with replaceable battery pack ● 1050 g lightweight, with a compact and ergonomic design    Specification Thermal Module Image Sensor VOx Uncooled Focal Plane Arrays Max. Resolution 1280 × 1024 Frame Rate 50 Hz Pixel Interval 12 μm Response Waveband 8 μm to 14 μm NETD Less than 15 mK (@25°C),F#=1.0 Lens (Focal Length) 60 mm, F1.0 Focus Mode Focus Ring Detection Range 3100 m Min. Focusing Distance 3 m Magnification 2.6x to 20.0x (7.7x) Field of View(H × V), Degrees / m @100m 14.6° × 8.8°/25.6m × 15.4m Optical Module Image Sensor 1/1.8'' Progressive Scan CMOS Max. Resolution 3840 × 2160 Focal Length 60 mm, F2.2 Min. Working Distance 3 m Focus Mode Focus Ring Magnification 5.5x to 22.0x（4x) Field of View (H × V), Degrees/m @100 m 7.3°× 4.1°/12.6m × 7.2m Smart IR Yes IR Illuminator Wavelength 850 nm Viewing Range at Night 400 m Replaceable IR Illuminator Yes Image Display Display 0.49 inch, OLED, 1920 × 1080 Palettes Thermal: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome; Optical: Day, Night, Green, Yellow, Auto Exit Pupil 8 mm Eye Relief 15 mm Diopter (Range) -5D to +3D Brightness Adjustment Yes Tone Adjustment Cold, warm Contrast Adjustment Yes FFC (Flat Field Correction) Mode Auto, Manual, External Correction   Zoom Pro No Image Pro 3.0 Yes Sync Pro Yes System Record Video Yes Capture Snapshot Yes Audio Recording Yes Storage Built-in EMMC (64 GB) PIP Yes Hotspot Yes Hot Track Yes Digital Magnetic Compass Yes GPS Yes Local Album Yes Standby Mode Yes Power Supply Battery Type Replaceable and Rechargeable Li-ion Battery Pack Battery Operating Time 5.5 h(25 °C, with hotspot off, LRF on) Type-C Power Supply 5 V/9 V DC, 3 A Support External Power Supply, Support Direct Charging General Dimension 152.8 mm × 81.95 mm × 231.5 mm (6.0" × 3.2" × 9.1") Working Temperature -30℃ to +55℃ Weight 1050 g with battery pack Protection Level IP67 Interpupillary Adjustment Range 60 mm to 74 mm Mounting Adapter 1/4“-20-UNC Laser Rangefinder Safety Class for Laser Class 1 Wavelength 905 nm Max. Measuring Range 1000 m Measurement Accuracy ±1 m Min. Measuring Range 10 m

Specifications
