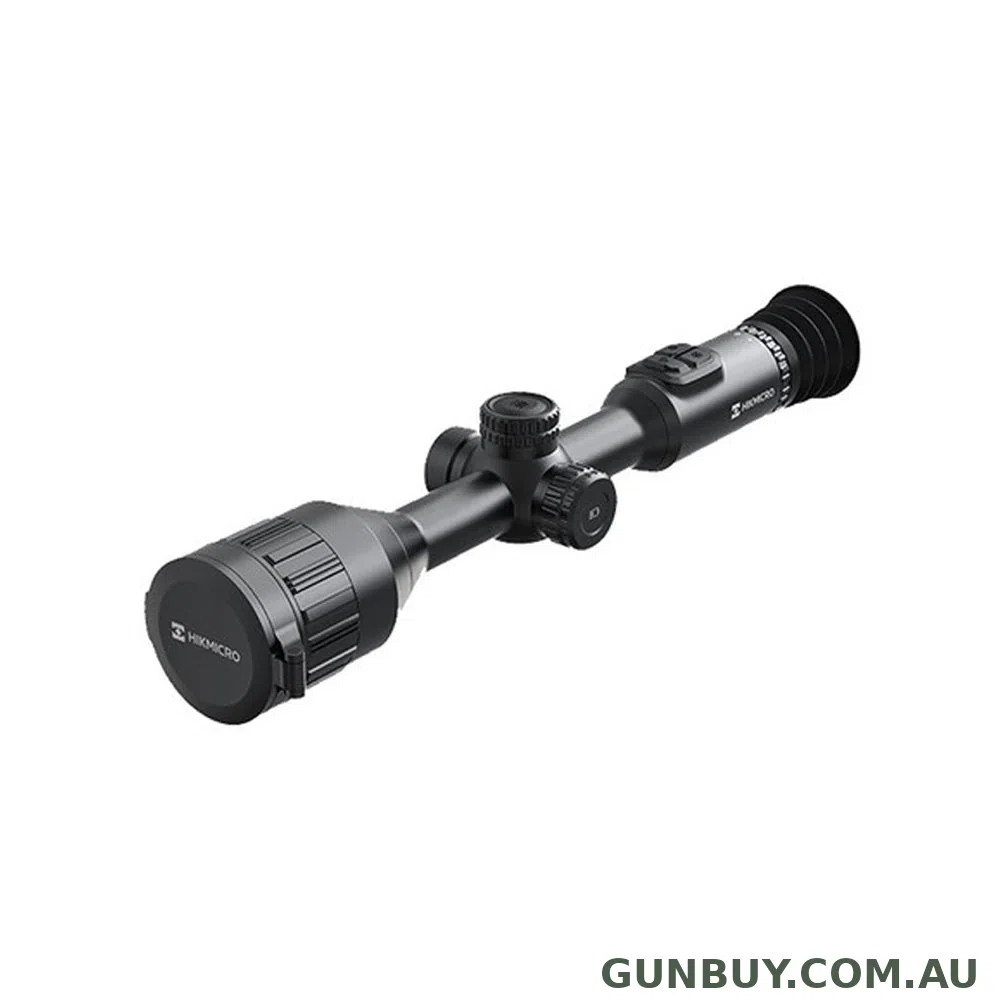

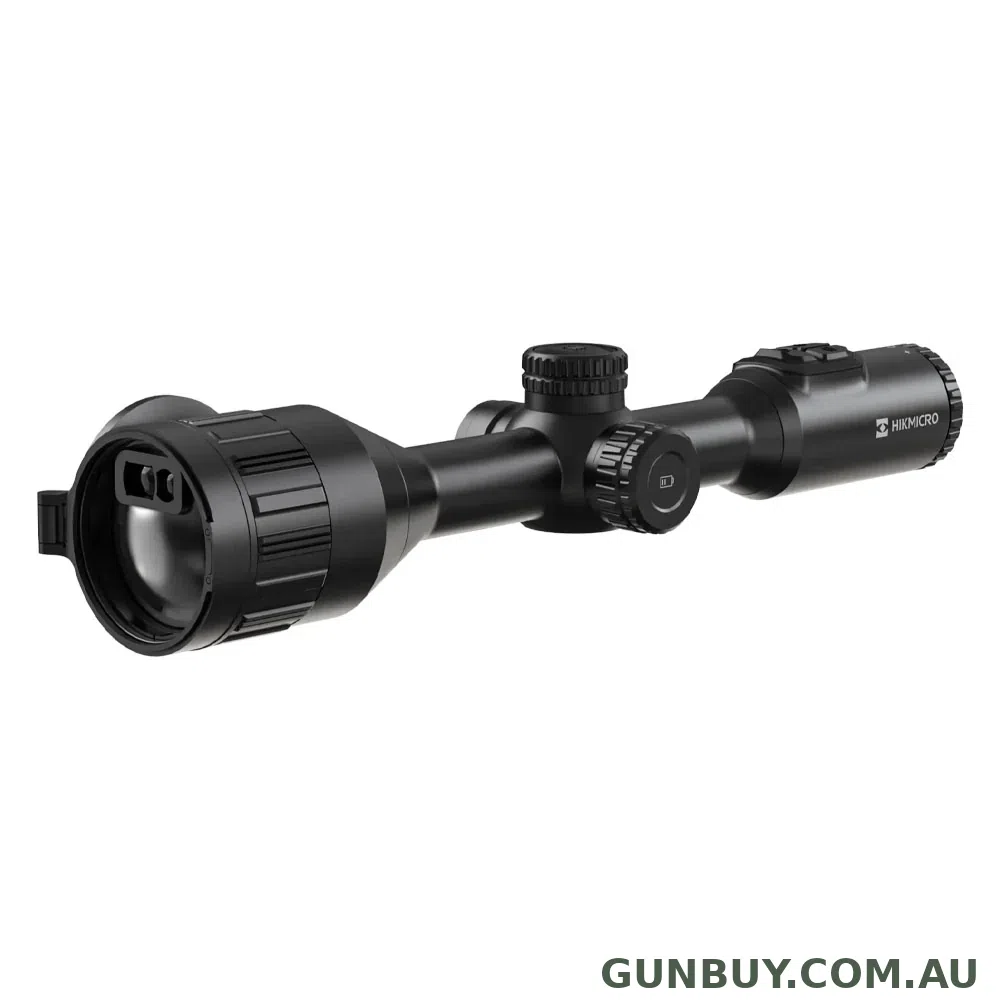

HIKMICRO Stellar SQ50L 3.0

Description

The HIKMICRO STELLAR SQ50L 3.0 Thermal Scope is equipped with a highly sensitive 640x512 @12um thermal detector (NETD 15mK), along with advanced Image Pro 2.0 processing and a shutterless system (HSIS) for uninterrupted performance. It ensures users can capture the finest details, regardless of weather or lighting conditions. Featuring a 1.03π AMOLED display with 2560x2560 resolution, the SQ50L 3.0 makes target detection faster and more precise. The built-in 1000m laser rangefinder (LRF) and ballistic calculation further enhance shooting accuracy, making this scope ideal for both field and forest hunting. Features: 640 x 512 resolution @12 um thermal detector High sensitivity thermal module NETD 15 mK (@25ûC, F# = 1.0) 50 mm, F1.0 lens with detection range up to 2600 m 2560 x 2560 resolution 1.03-inch OLED display HIKMICRO Shutterless Image System (HSIS) Built-in lens laser rangefinder up to 1000 m, with ballistic calculation Rechargeable internal batteries and external battery, 9h continuous operation High shock resistance up to 1000 g/0.4 ms SPECS: Thermal Modular Image Sensor:VOx Uncooled Focal Plane Arrays Max. Resolution: 640x512 Frame Rate: 50Hz Pixel Interval: 12 um Response Waveband: 8 um to 14 um NETD: Less than 15 mK (@25ûC),F#=1.0 Lens (Focal Length): 50mm, F1.0 Detection Range: 2600m Focus Mode: Focus Ring Field of View(H x V), Degrees / m @100m: 8.8û x7.0û/15.4m x 12.3m Image Display Display: 2560x2560,1.03 inch OLED Contrast Adjustment: Yes Brightness Adjustment: Yes Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome Flat Field Correction Mode: Exit Pupil: 6mm Eye Relief: 45mm Diopter (Range): -4D to 4D Tone Adjustment: Cold, Warm Zoom Pro: Yes HSIS (HIKMICRO Shutterless Image System): Yes General Protection Level: IP67 Weight: 860g without external battery Dimension: 422.5mm x 88.4mm x 74.5mm Mounting: Standard 30mm Working Temperature: -30 ûC to 55 ûC (-22 ûF to 131ûF) Center Height: 36mm System Record Video: On-board Video Recording Capture Snapshot: Yes Hotspot: Yes Standby Mode: Yes Storage: Built-in EMMC (64 GB) PIP: Yes Hot Track: Yes Distance Measurement: Yes Audio Recording: Yes Recoil-activation Recording: Yes Freeze Zeroing: Yes Max. Recoil: 1000g/0.4ms Local Album: Yes Zeroing Profiles: 5 Ballistic Calculation: Yes Power Supply Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external) Battery Operating Time: 9 hours continuous running (@25ûC, Zoom Pro, LRF on) Type-C Power Supply: 5 V DC/2 A, USB Type-C interface Supports QC3.0* Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery. Laser Rangefinder Safety Class for Laser: Class 1 Wavelength: 905nm Max. Measuring Range: 1000m Measurement Accuracy: ±1 m LRF Module in Lens: Yes Min. Measuring Range: 10m

Specifications
