Marlin · Rifle

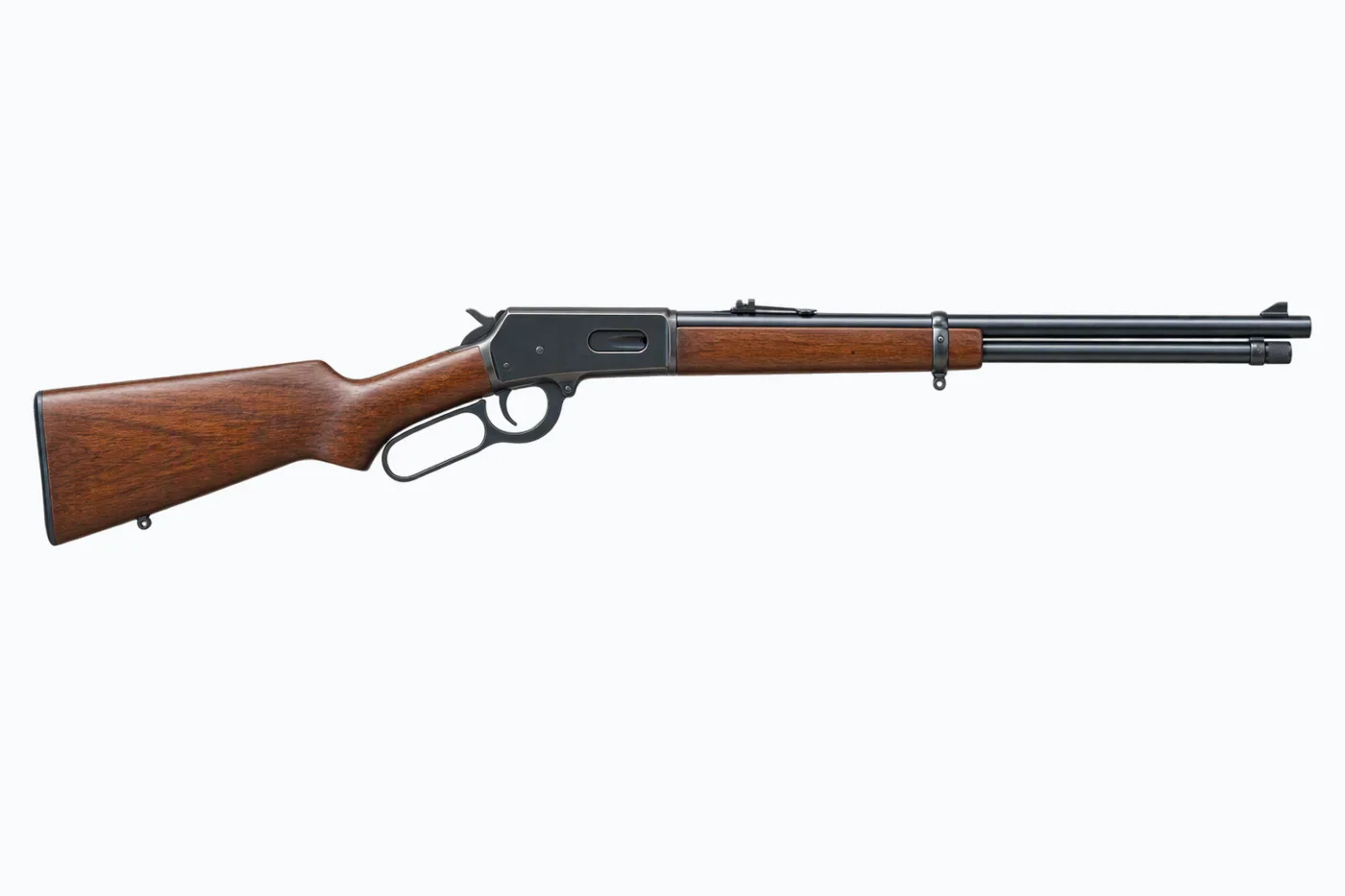

Marlin Model 1893
Lever action · .30-30 Winchester · introduced 1893
Also known as Model 93, Marlin Safety
About the Marlin Model 1893
The Marlin Model 1893 was a lever-action repeating rifle and Marlin's first design built for smokeless powder, chambered in cartridges such as .30-30 Winchester, .32-40 and .38-55. Its solid-top, side-ejecting receiver became a Marlin hallmark, making the rifle easy to scope and a direct rival to the Winchester Model 1894. It is the direct forerunner of the Marlin Model 36 and the long-running Model 336.
The 1893's solid-top, side-ejecting receiver let shooters mount a scope directly over the action, an advantage that helped its descendant, the Model 336, eventually outsell the rival Winchester 94.
Marlin Model 1893 specifications
General
- Type
- Rifle
- Action
- Lever action
- Firing mechanism
- Hammer-fired
- Trigger
- Single stage
- Calibres
- .30-30 Winchester, .32-40 Winchester, .38-55 Winchester
- Magazine capacity
- 7 rounds
- Magazine
- Tubular magazine
Dimensions
- Barrel length
- 610 mm (24.0 in)
- Overall length
- 1080 mm (42.5 in)
- Weight (empty)
- 3.04 kg (6.69 lb)
Barrel
- Rifling
- Right hand
Materials
- Barrel
- Steel
- Receiver / frame
- Steel
- Stock
- Wood
- Finish
- blued
Performance
- Muzzle velocity (typical)
- 701 m/s (2300 fps)
- Muzzle energy (typical)
- 2627 J (1938 ft·lb)
- Effective range
- 200 m
History
- Introduced
- 1893
- Discontinued
- 1936
- Production status
- Discontinued
- Country of origin
- US
- Designer
- Lewis L. Hepburn
Available calibres
Features
- Solid top receiver
- Side ejection
- Tubular magazine
- Straight grip stock
Safety
- Half cock notch
- Two piece firing pin
Officially shortened to 'Model 93' in 1905; redesignated the Model 36 in 1936 and evolved into the Model 336 in 1948.
Similar models
Armscor TM22 Lever Action
Lever action · .22 Long Rifle

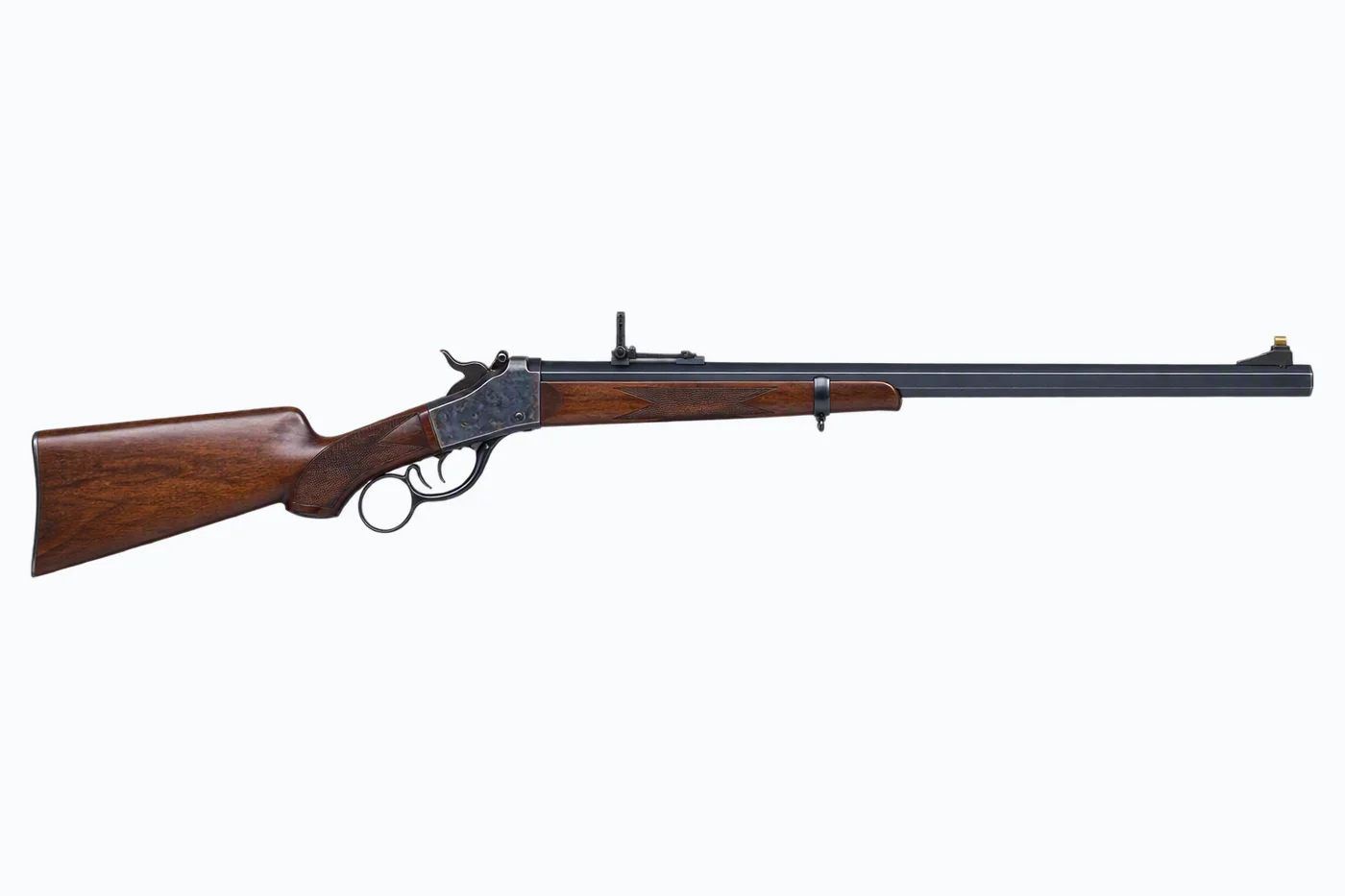

Ballard No. 5 Pacific
Falling block · .45-70 Government

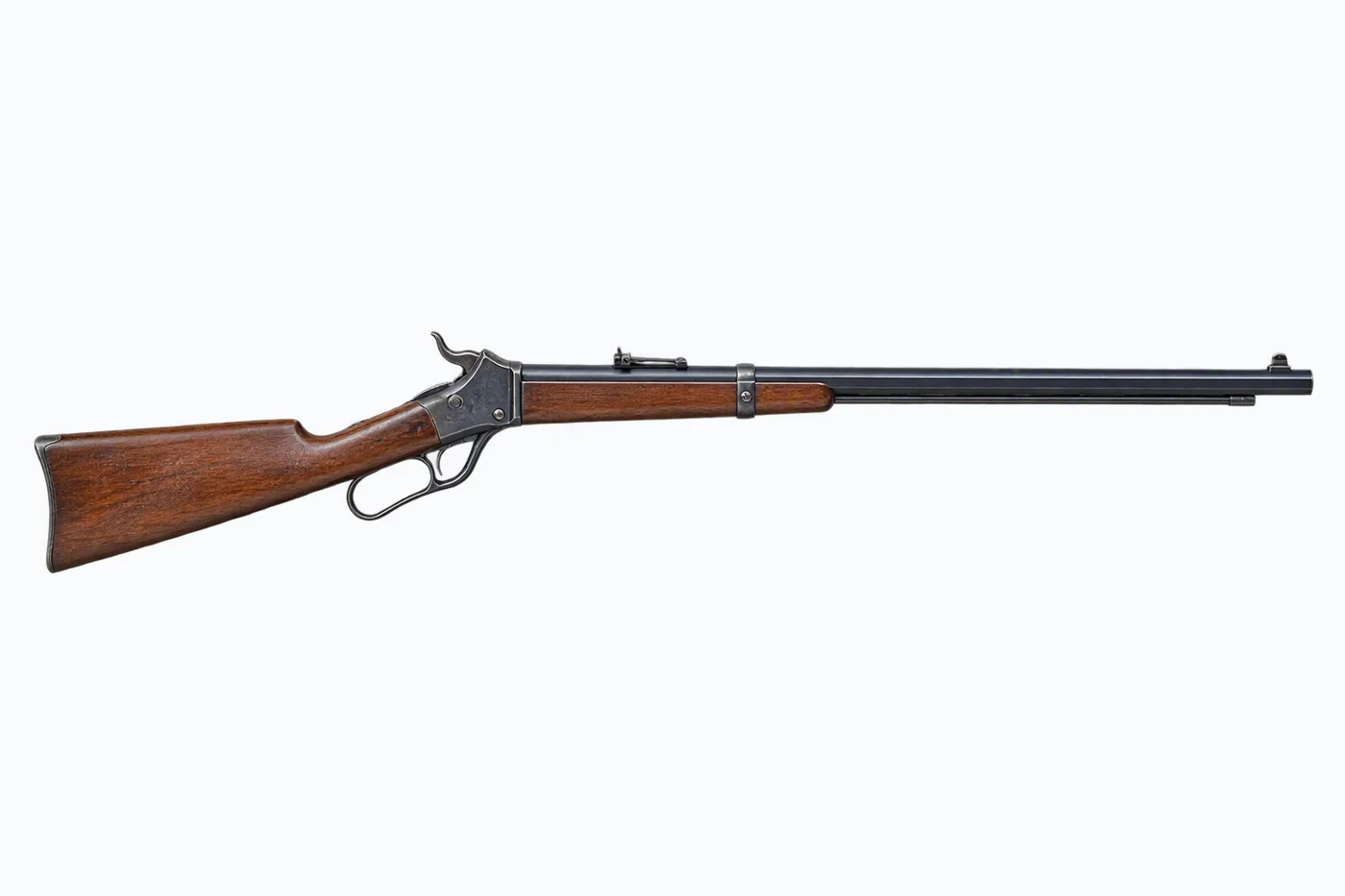

Ballard Rifle
Falling block · .44 Long Rimfire

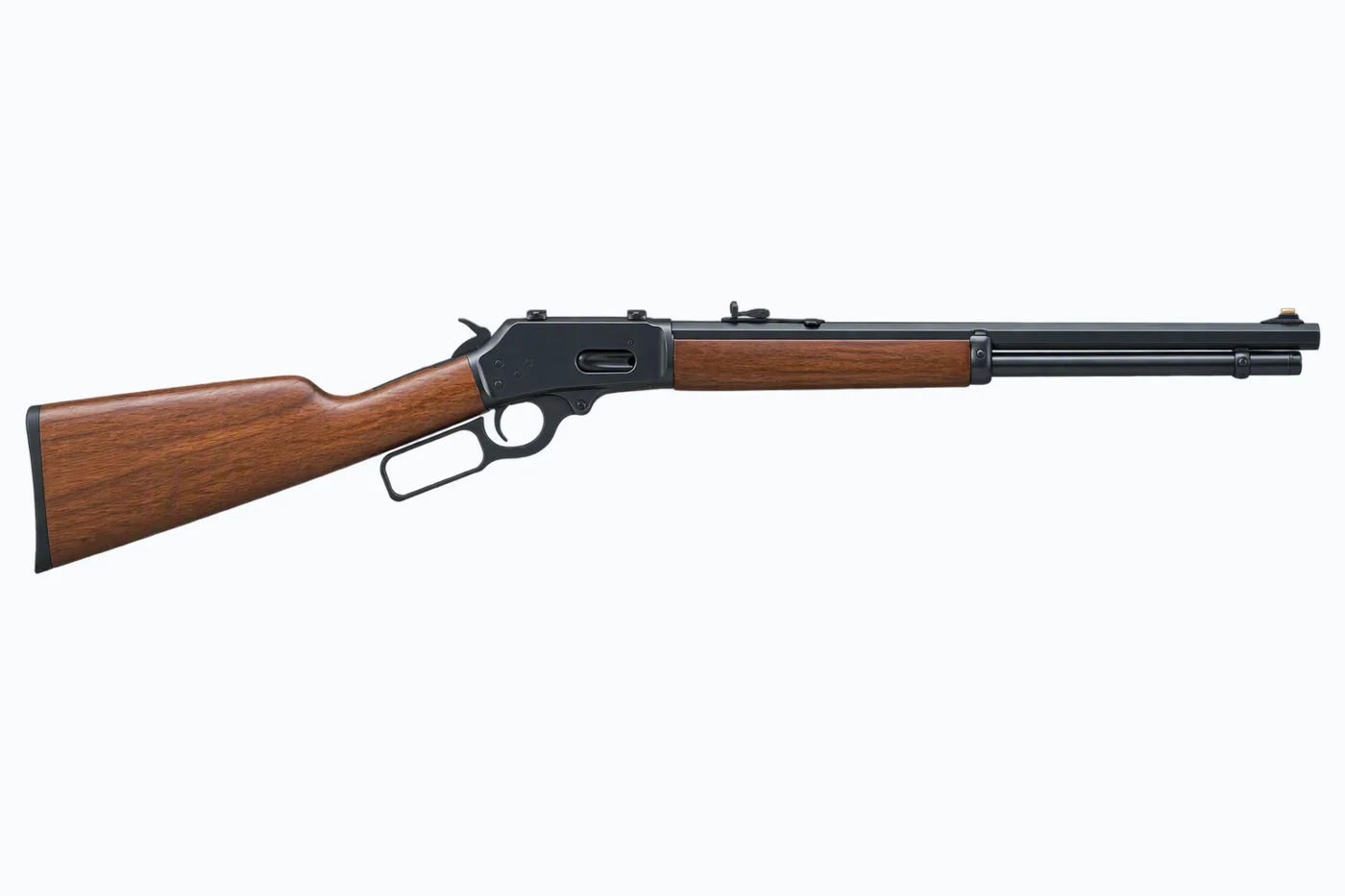

Marlin 1894 Cowboy
Lever action · .45 Colt

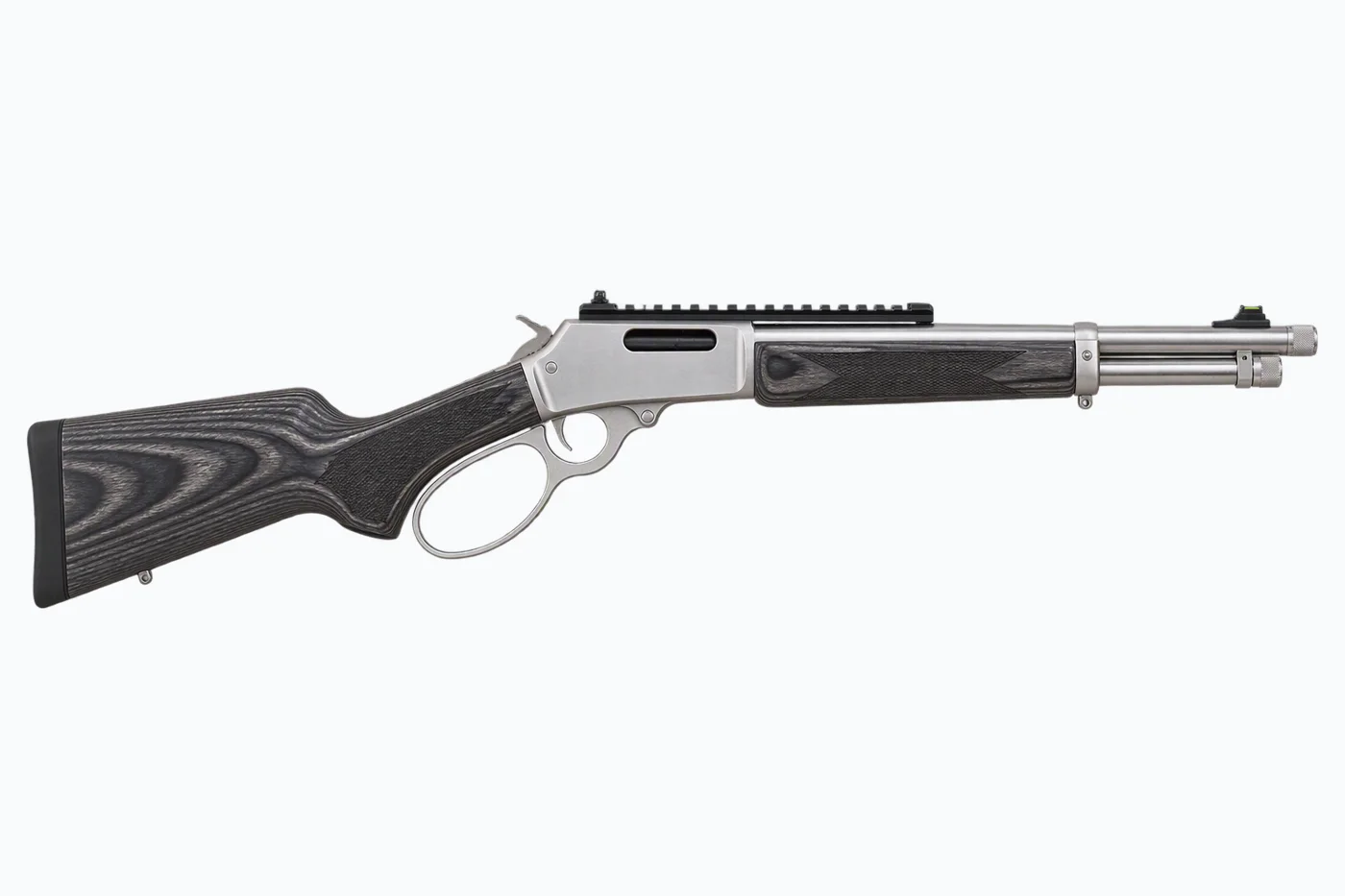

Marlin 1894 Trapper
Lever action · 10mm Auto

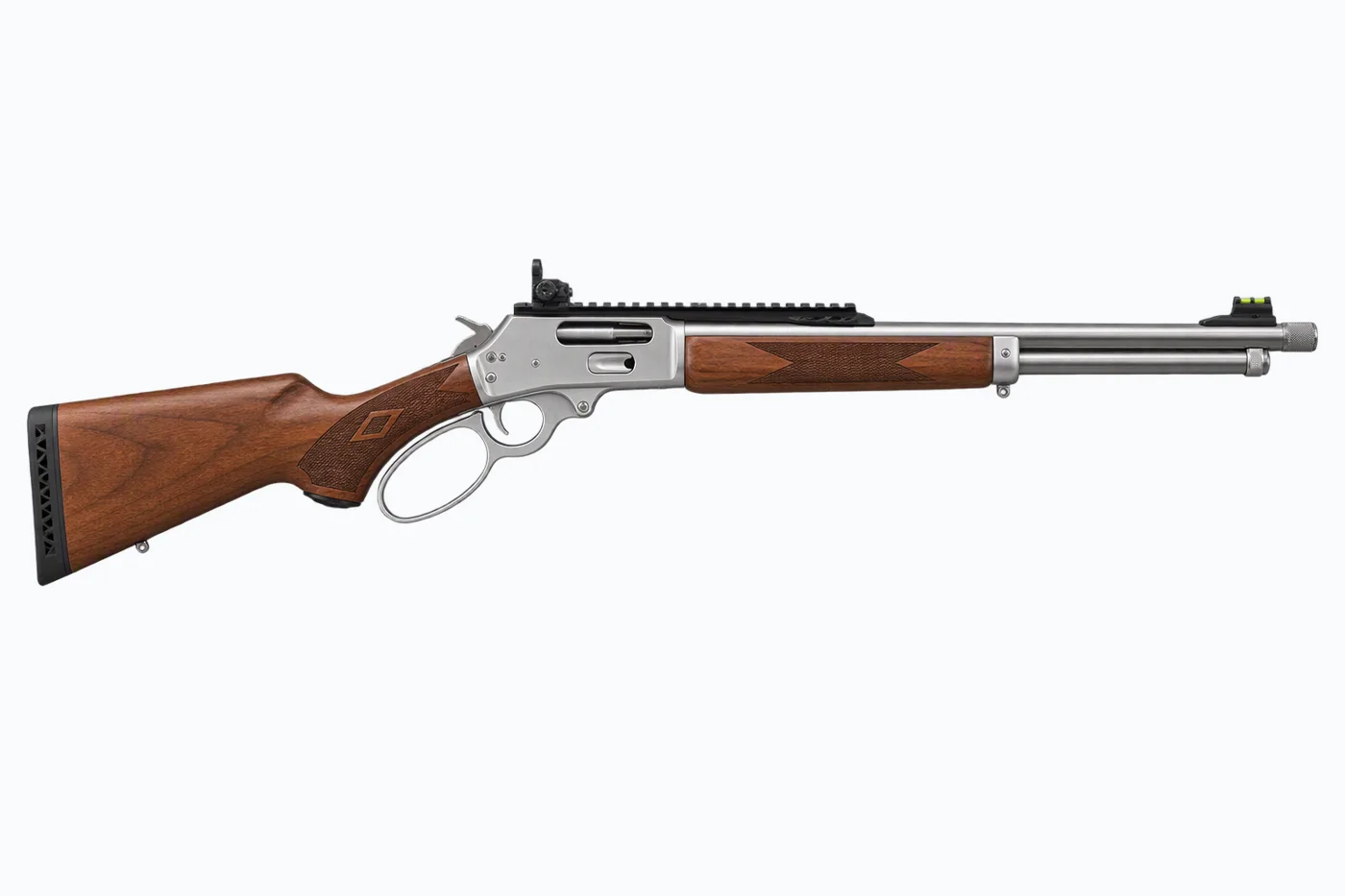

Marlin 1895 SBL
Lever action · .45-70 Government

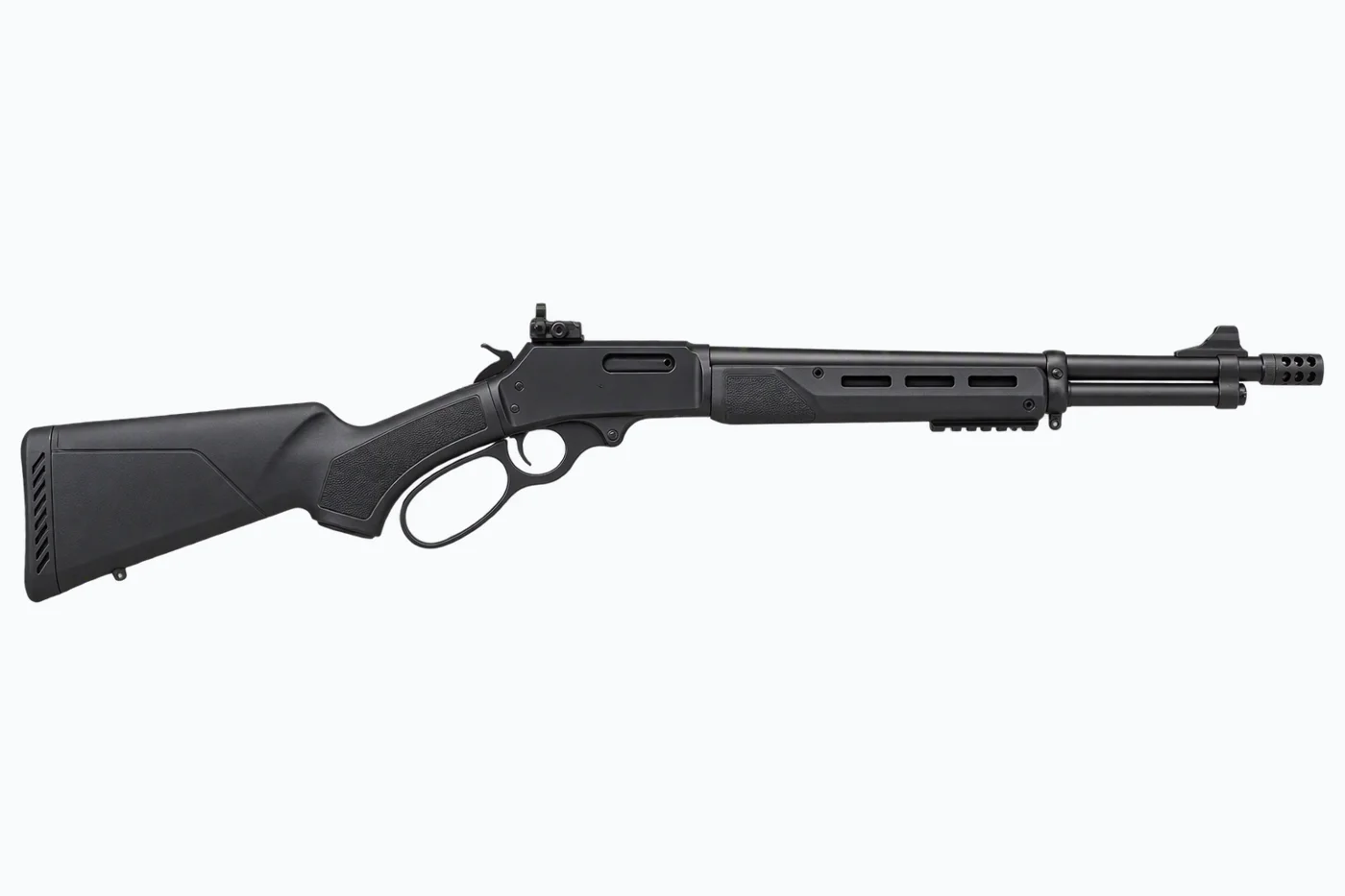

Marlin 336 Dark Series
Lever action · .30-30 Winchester

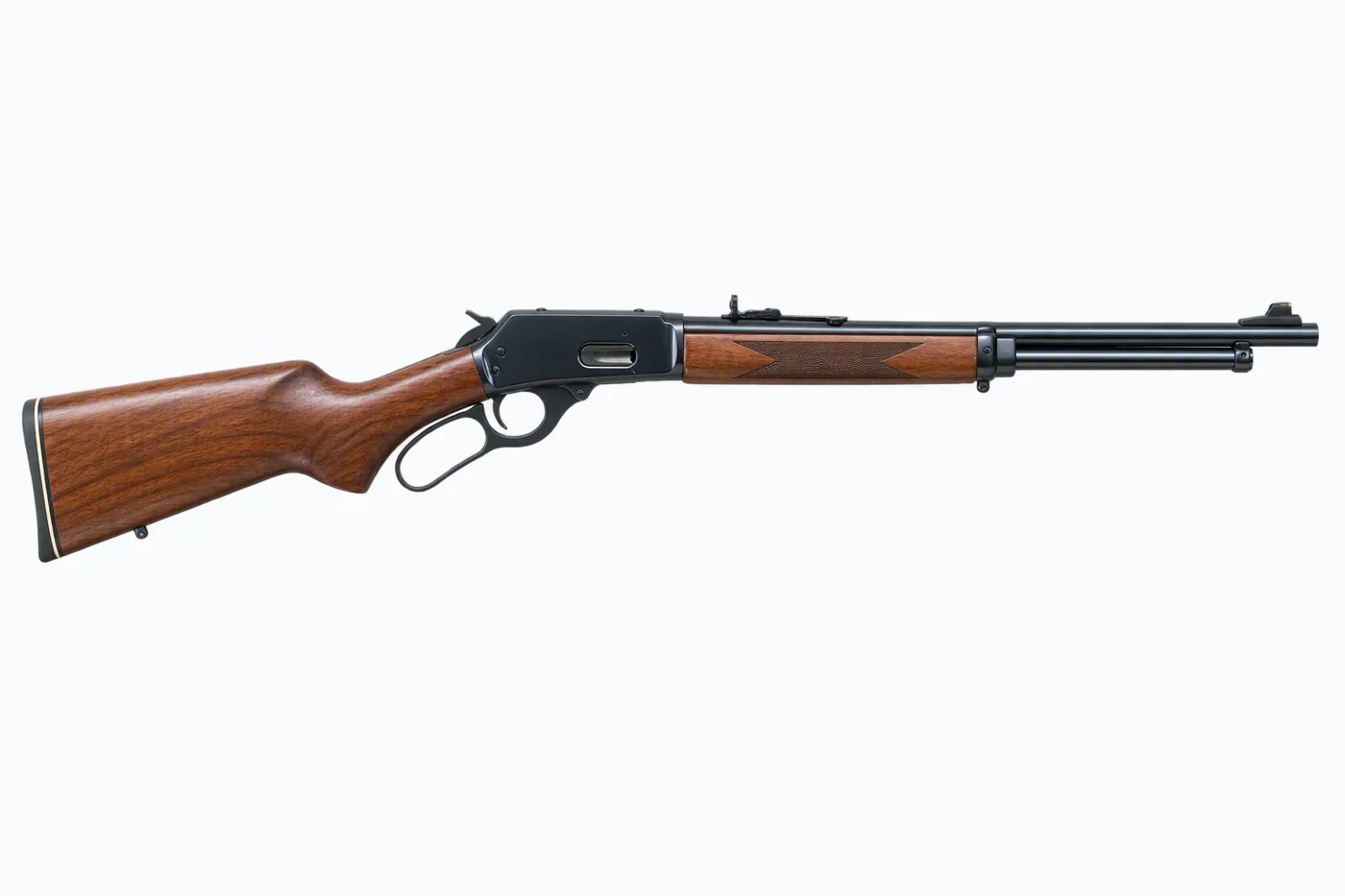

Marlin 336C
