Sako · Rifle

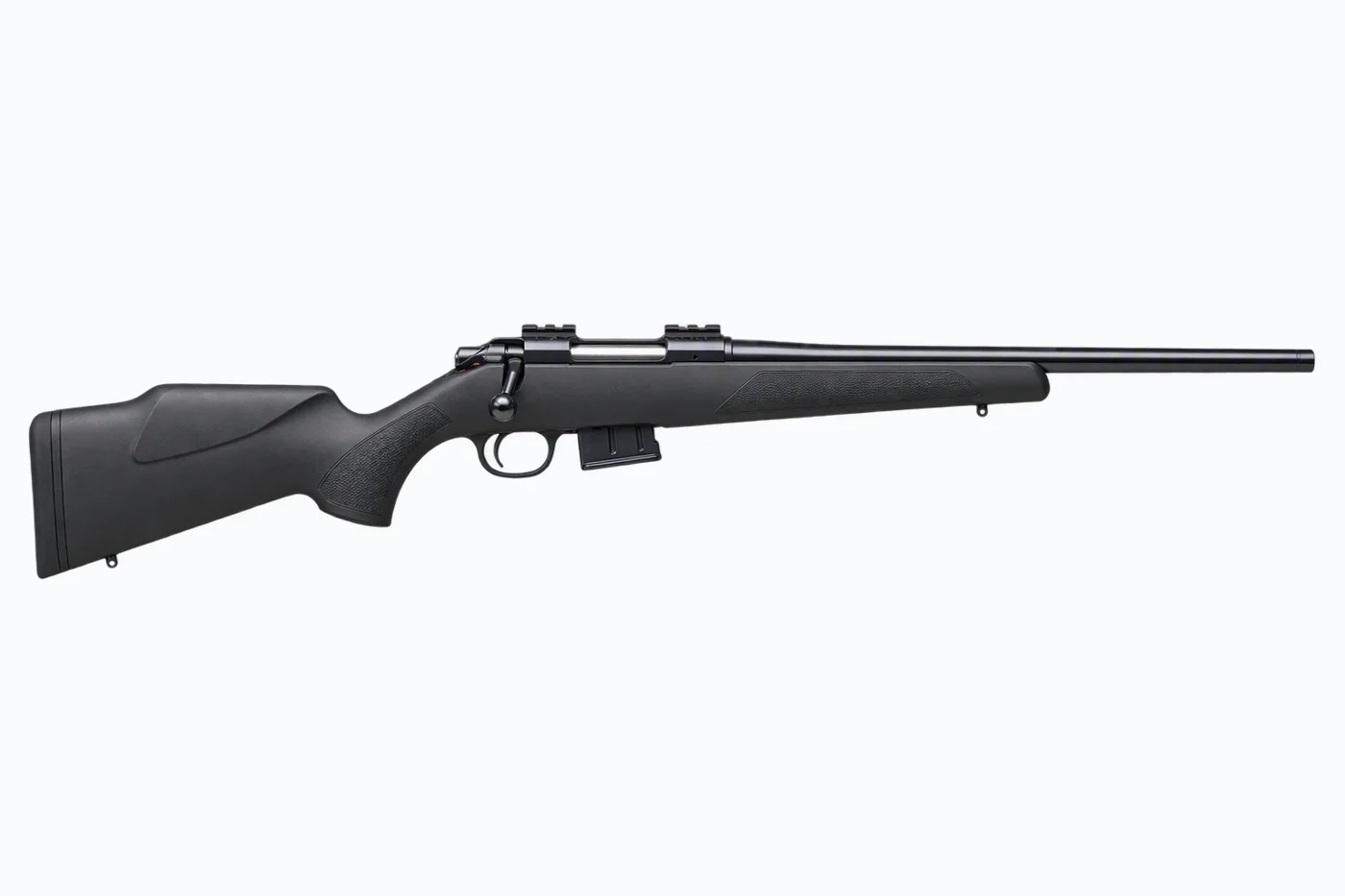

Sako Quad

Name: Sako Quad
Brand: Sako

Bolt action · .22 Long Rifle · introduced 2005

Also known as Sako Quad Combo, Sako Quad Range

Find Sako Quad for sale Check the market price

About the Sako Quad

The Sako Quad is a Finnish bolt-action rimfire rifle introduced in 2005 with a defining feature unique among production rimfires: a tool-change interchangeable-barrel system that allows the same receiver and stock to be re-chambered in seconds between four different rimfire cartridges - .22 Long Rifle, .22 Winchester Magnum Rimfire, .17 Hornady Magnum Rimfire, and .17 Mach 2. The user inserts a special tool, turns it three full rotations, tilts the barrel up to release the action, and slots in another barrel; point of impact is retained between swaps. Two magazine bodies are supplied (one for the shorter .22 LR / .17 Mach 2 case, one for the longer .22 WMR / .17 HMR), and either a wood or synthetic stock with a Monte Carlo cheekpiece is available. The Quad was discontinued circa 2017, replaced in the Sako rimfire lineup by the simpler single-caliber Finnfire II.

The Quad was the only mainstream production bolt-action rimfire ever sold with a true four-caliber switch-barrel system - one rifle, four cartridges, no gunsmith required. Sako engineered the breech and barrel-collar interface so precisely that point of impact was retained after a barrel swap, making it possible for a hunter to carry a single Quad receiver and switch between subsonic .22 LR for rabbits, .22 WMR for fox, .17 HMR for long-range varmints, and .17 Mach 2 for inexpensive plinking - all in the same morning.

Sako Quad specifications

General

Type: Rifle
Action: Bolt action
Firing mechanism: Striker-fired
Trigger: Single stage
Trigger pull: 1.3 kg (2.9 lb)
Calibres: .22 Long Rifle, .17 Hornady Mach 2, .17 Hornady Magnum Rimfire, .22 Winchester Magnum Rimfire
Magazine capacity: 5 rounds
Magazine: Detachable box magazine

Dimensions

Barrel length: 560 mm (22.0 in)
Overall length: 1025 mm (40.4 in)
Weight (empty): 3.20 kg (7.05 lb)

Barrel

Rifling twist: 1:9 in (229 mm)
Rifling: Right hand
Grooves: 6

Materials

Barrel: Steel
Receiver / frame: Steel
Stock: Polymer
Finish: blued

Performance

Muzzle velocity (typical): 330 m/s (1083 fps)
Muzzle energy (typical): 141 J (104 ft·lb)
Effective range: 100 m

History

Introduced: 2005
Discontinued: 2017
Production status: Out of production
Country of origin: FI

Available calibres

.22 Long Rifle.17 Hornady Mach 2.17 Hornady Magnum Rimfire.22 Winchester Magnum Rimfire

Features

Interchangeable barrel system
Four calibers in one rifle
Tool change in seconds no armorer required
Point of impact retained after barrel swap
50 degree bolt throw
Single stage adjustable trigger
Monte carlo synthetic or wood stock
Two magazine types 22lr 17m2 and 22wmr 17hmr
Length of pull adjustable via recoil pad spacers
Open sights optional

Safety

Two position safety

Specifications shown are typical for the Heavy Barrel model with the .22 LR barrel installed (560 mm / 22"). Barrel is 6-groove, 1:9" twist on the .17 HMR barrel and 1:16" on .22 LR. Weight varies by stock/barrel combination from approximately 2.6 kg (Sporter wood) to 3.5 kg (Heavy Barrel synthetic). Replacement barrels were sold as accessories for users who initially bought the rifle in only one caliber.
