Springfield Armory · Carbine

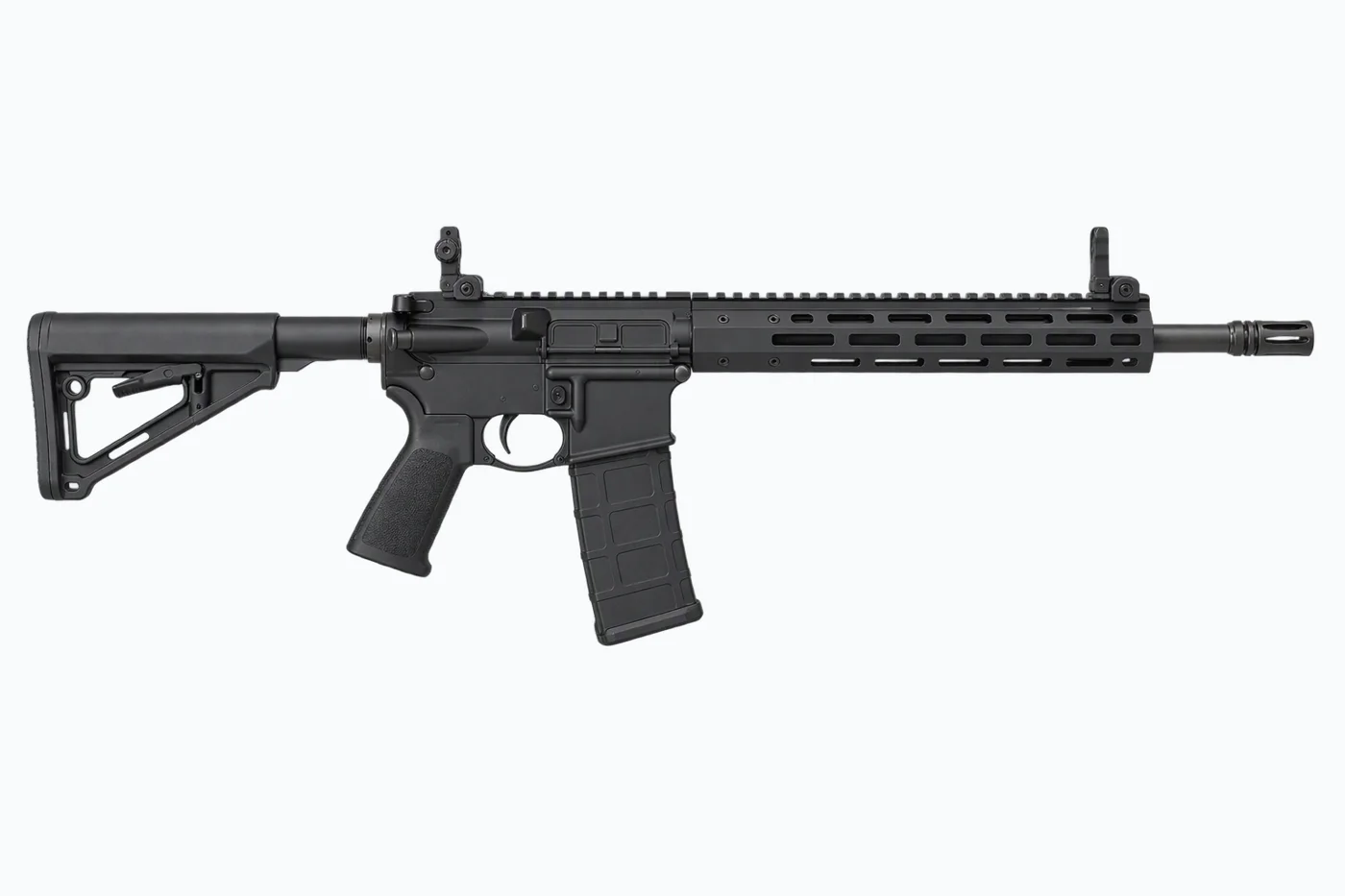

Springfield SAINT Edge
Gas-operated (direct impingement) · 5.56x45mm NATO · introduced 2018
Also known as Springfield Saint Edge, SAINT Edge 5.56
About the Springfield SAINT Edge
The Springfield SAINT Edge is a premium AR-15 carbine introduced in 2018 as the high-end variant of Springfield Armory's SAINT rifle line. Weighing just 6 pounds 3 ounces, the Edge features a lightweight 16-inch CMV barrel with Melonite coating and 1:8 twist rate, optimized for bullets ranging from 55 to 77 grains. The rifle distinguishes itself with a machined 7075-T6 billet aluminum lower receiver featuring lightening cuts and Springfield's Accu-Tite tension system for a tight, rattle-free fit with the forged upper receiver. The Edge comes equipped with Springfield's flat modular match trigger with enhanced Melonite coating, providing a crisp, competition-grade trigger pull. A low-profile pinned adjustable gas block allows fine-tuning of the mid-length gas system for optimal performance with different ammunition types. The free-float aluminum handguard offers M-LOK attachment points and runs nearly the full length of the barrel. Premium furniture includes a BCMGUNFIGHTER Mod 0 SOPMOD stock and Mod 3 pistol grip. The enhanced M16-style bolt carrier group uses a 9310 steel bolt that has been high-pressure tested and magnetic particle inspected.
Springfield Armory's entry into the AR-15 market with the SAINT line in 2016 was met with skepticism by some enthusiasts, but the rifles quickly gained respect for their quality and value. The SAINT Edge, introduced two years later, demonstrated Springfield's commitment to competing in the premium carbine market. The Edge's billet lower receiver with its distinctive lightening cuts has become an instantly recognizable feature. The rifle has found favor with competitive shooters in 3-gun matches where its accuracy, light weight, and adjustable gas system provide advantages. The SAINT line's marketing emphasized readiness and capability, with the Edge positioned as the 'no-compromise' variant for serious users. The rifle's combination of match-grade trigger, adjustable gas, and premium furniture at its price point disrupted the market and forced competitors to enhance their offerings.
Springfield SAINT Edge specifications
General
- Type
- Carbine
- Action
- Gas-operated (direct impingement)
- Firing mechanism
- Hammer-fired
- Trigger
- Single stage
- Trigger pull
- 2.0 kg (4.5 lb)
- Calibres
- 5.56x45mm NATO
- Magazine capacity
- 30 rounds
- Magazine
- Detachable box magazine
Dimensions
- Barrel length
- 406 mm (16.0 in)
- Overall length
- 826 mm (32.5 in)
- Weight (empty)
- 2.81 kg (6.19 lb)
- Weight (loaded)
- 3.38 kg (7.45 lb)
Barrel
- Rifling twist
- 1:8 in (203 mm)
- Rifling
- Right hand
- Grooves
- 6
Materials
- Barrel
- Steel
- Receiver / frame
- Aluminum alloy
- Stock
- Polymer
- Finish
- hard_anodized
Performance
- Muzzle velocity (typical)
- 914 m/s (2999 fps)
- Muzzle energy (typical)
- 1671 J (1232 ft·lb)
- Effective range
- 500 m
History
- Introduced
- 2018
- Production status
- In production
- Country of origin
- US
Features
- Mid length gas system
- Adjustable gas block
- Free floating handguard
- M lok rail
- Rotating bolt
- Flat top receiver
- Picatinny rail
- Lightweight profile barrel
- Melonite coating
- Enhanced trigger
- Ambidextrous safety
- Bcmgunfighter stock
- Bcmgunfighter grip
- Billet lower receiver
- Forged upper receiver
- Hpt mpi tested
- Flip up sights
- Accu tite tension system
Safety
- Manual safety selector
The SAINT Edge was developed as Springfield Armory's answer to the growing demand for feature-rich, competition-ready AR-15 carbines. The billet lower receiver with integral trigger guard and lightening cuts represents a significant upgrade over standard forged lowers, reducing weight while increasing rigidity. The adjustable gas block is a standout feature, allowing shooters to tune the rifle for reliable cycling with suppressed fire or when using specific ammunition loads. Springfield's choice of BCMGUNFIGHTER furniture reflects the reputation of Bravo Company components among serious shooters. The 1:8 twist rate provides excellent stabilization for the popular 77-grain match ammunition while still handling lighter bullets. The Melonite barrel treatment provides superior corrosion and wear resistance compared to traditional chrome lining. The SAINT Edge ships with flip-up spring-loaded sights, a Magpul PMAG Gen M3 magazine, and a padded rifle case. Springfield backs the rifle with a lifetime warranty. The Edge sits at a higher price point than the standard SAINT but below boutique custom rifles, offering an attractive balance of features and value.
