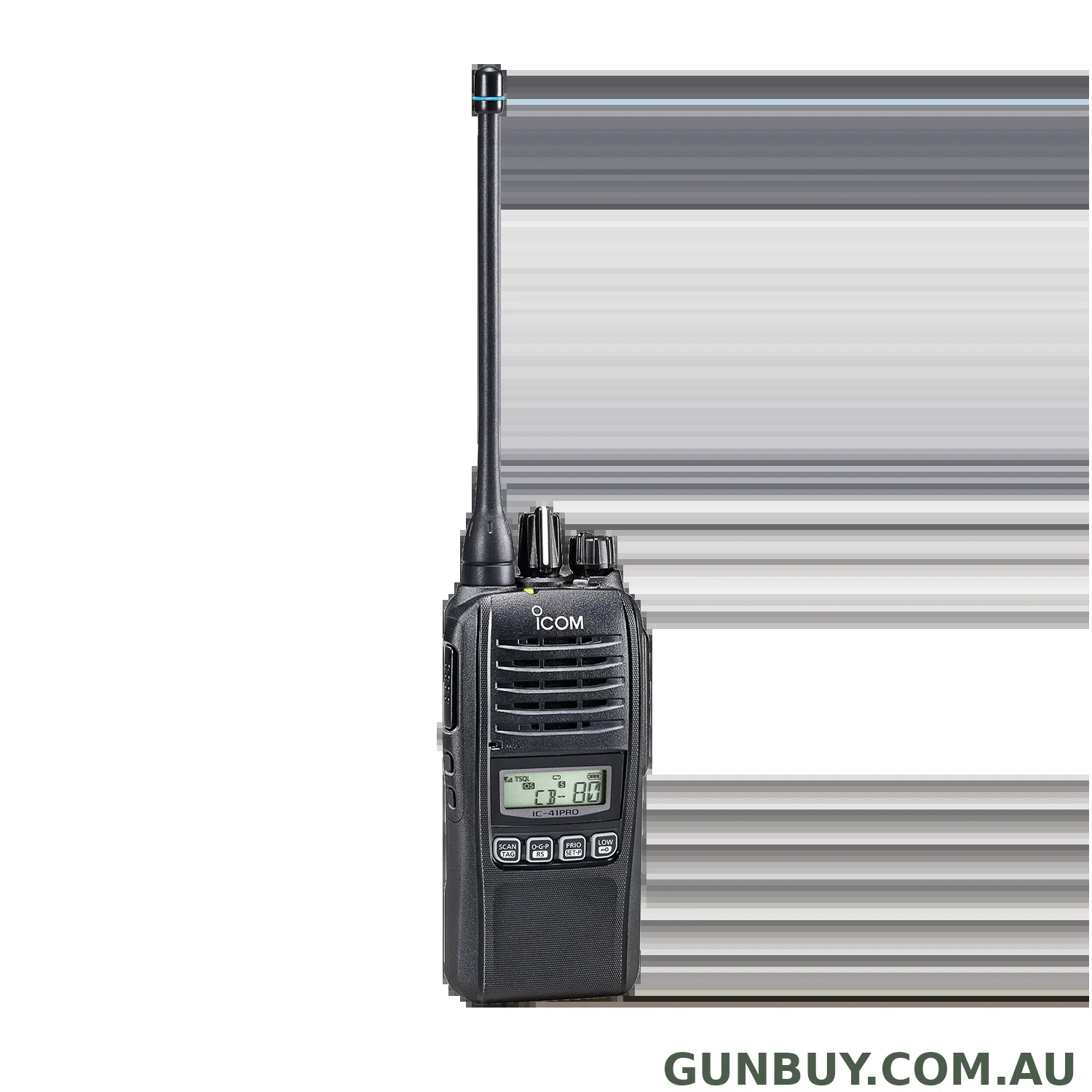

Icom IC- 41Pro Handheld UHF CB Transceiver

Description

The 1500mW volume audio from Icom custom speaker facilitates loud and clear communication. Frequency coverage 476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only Number of channels 128 channels Type of emission W: 16K0F3E (25.0 kHz) AUS CB N: 8K50F3E (12.5 kHz) AUS CB Power supply requirement 7.5 V DC Current drain(approx.) Tx High (5W) 1.7 A Rx Max. audio 500 mA (Internal SP) Antenna impedance 50 Ω Operating temperature range –30°C to +60°C Dimensions(W × H × D; Projections not included) 52.2 × 111.8 × 30.3 mm (With BP-280) Weight (approx.) 270 g (With BP-280) Transmitter IC-41PRO Output power 5 W Maximum permissible deviation ± 2.5 kHz (12.5 kHz) ±5.0 kHz (25.0 kHz) Frequency error ±2.5 ppm Spurious emissions 70 dB min. Adjacent channel power 60 dB min.; 69 dB typ. (12.5 kHz) 70 dB min.; 74 dB typ. (25 kHz) Audio harmonic distortion 1.0% typ. (12.5 kHz) 1.5% typ. (25 kHz)(at AF 1 kHz 40% deviation) FM Hum and Noise(without CCITT filter) 34 dB  min.; 40 dB typ. (12.5 kHz) 40 dB min.; 46 dB typ. (25 kHz) Receiver IC-41PRO Sensitivity (at 12dB SINAD) 0.25 μV typ. Adjacent channel selectivity 40 dB min.; 56 dB typ. (12.5 kHz),70 dB min.; 73 dB typ. (25 kHz) Spurious response rejection 70 dB min. Intermodulation rejection 70 dB min.; 73 dB typ. Hum and noise (without CCITT filter) 34 dB min.; 43 dB typ. (12.5 kHz) 40 dB min.; 49 dB typ. (25 kHz)   Squelch sensitivity 0.25 μV typ. AF output power(at 5% distortion 8Ω load ) Internal SP 1500 mW typical External SP 450 mW typical (single end)1500 mW typical (BTL, HM-222HLWP connected*)

Specifications
