Winchester Model 12

About the Winchester Model 12

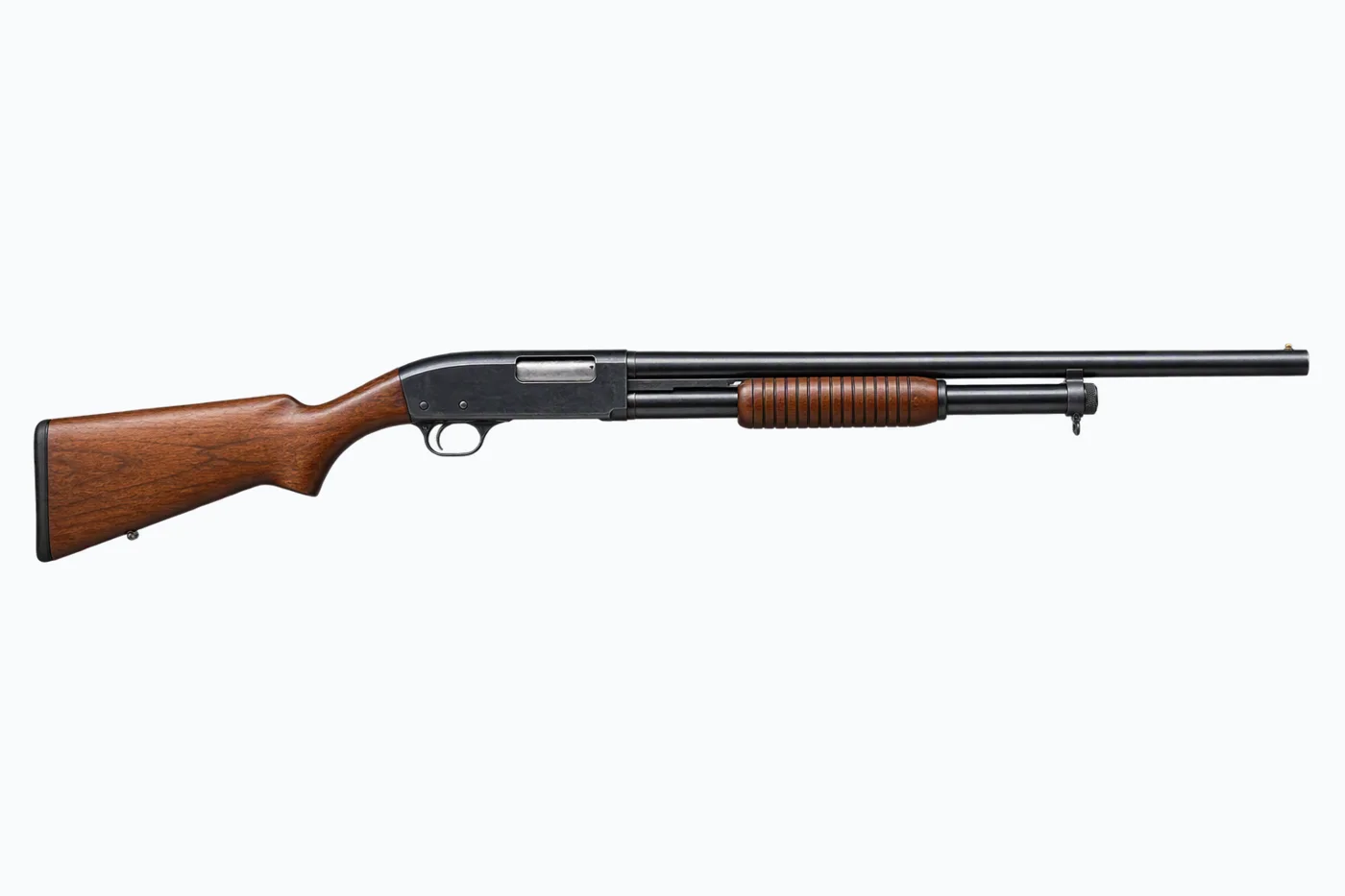

The Winchester Model 12 is an internal-hammer pump-action shotgun designed by Winchester engineer Thomas Crossley Johnson and introduced in 1912. Popularly named the 'Perfect Repeater' at its introduction, the Model 12 set the standard for pump-action shotguns over its 52-year high-rate production life. Distinguished by its all-machined steel construction with no stamped parts, the Model 12 earned a reputation for exceptional smoothness of action, reliability, and build quality that remains legendary among shotgun enthusiasts. Initially chambered in 20 gauge, the 12 and 16 gauge versions followed in 1913, and the 28 gauge in 1934. The Model 12 was available in barrel lengths from 508 mm (20 inches) to 813 mm (32 inches) and in numerous grades including Field, Trap, Skeet, Pigeon, Tournament, Featherweight, and Heavy Duck. Military variants with heat shields and bayonet lugs served extensively in both World Wars, Korea, and Vietnam. Nearly two million units were produced before Winchester discontinued the standard model in 1964, with limited production runs continuing into the 1980s.

The Winchester Model 12 earned the nickname 'The Perfect Repeater' upon its introduction in 1912, a name it lived up to across five decades of production. Its designer, T.C. Johnson, spent nearly 50 years at Winchester and accumulated 125 patents on firearms. The Model 12 was so smooth and fast in operation that skilled shooters could 'slam fire' it by holding the trigger and rapidly pumping the action. During World War I, German forces formally protested the use of trench shotguns as inhumane, to which the U.S. Judge Advocate General responded by affirming their legality. The Model 12 sold over 100,000 units within its first two years, an extraordinary achievement for the era.

Winchester Model 12 specifications

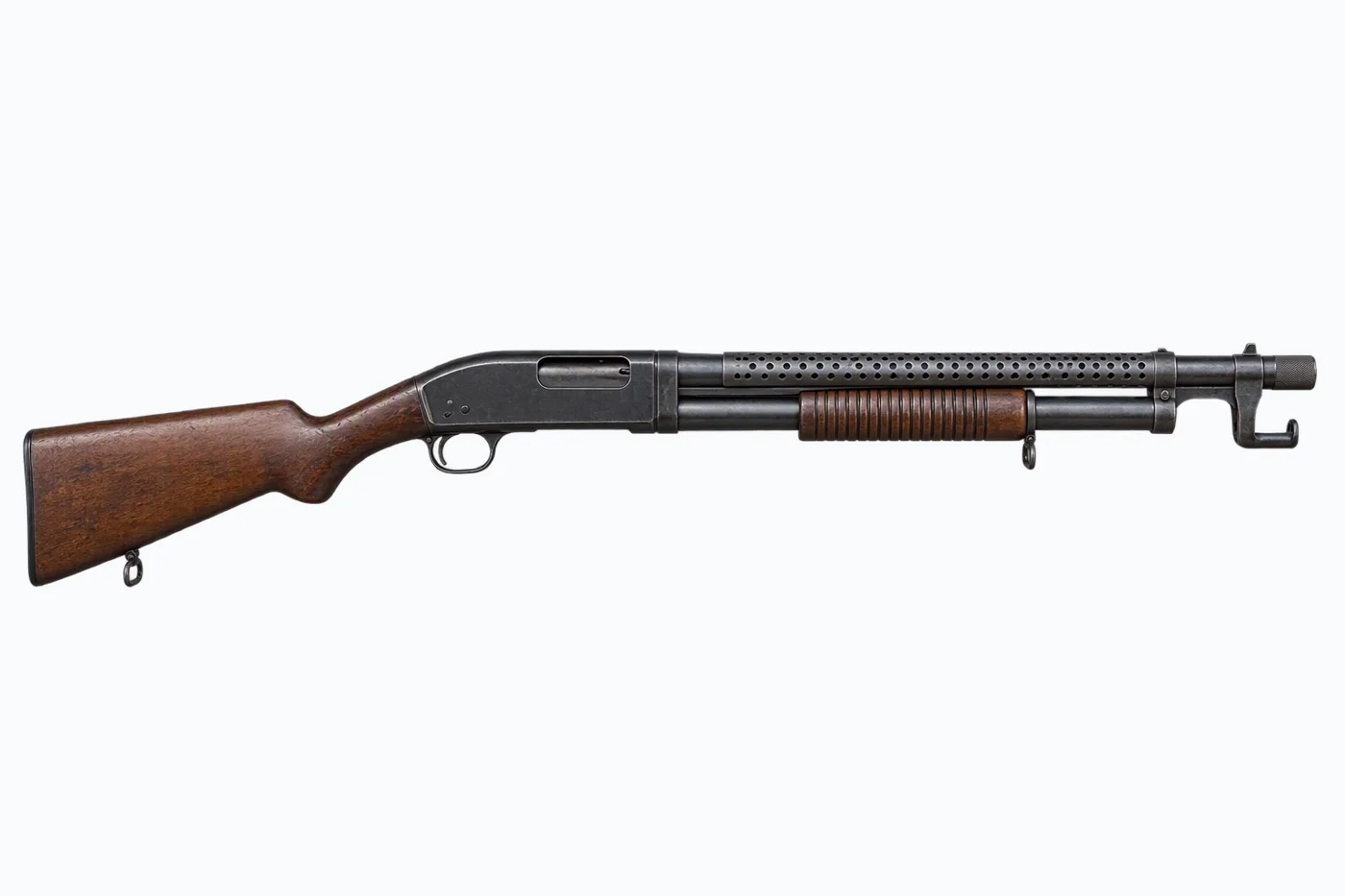

The Model 12 was based in part on the earlier Winchester Model 1893/1897 designed by John M. Browning, but T.C. Johnson redesigned it with an internal hammer and streamlined receiver. Unlike its predecessor, the Model 12 featured a closed-top receiver with side ejection rather than top ejection, which gave it cleaner lines and protected the action from debris. The Trench Gun variant featured a 508 mm (20-inch) cylinder bore barrel, perforated steel heat shield, and M1917 bayonet adapter. Approximately 20,000 were purchased by the U.S. Army in World War I, and over 80,000 were procured during World War II, primarily for use in the Pacific Theater. The Model 12 was so well-regarded that it remained in military inventory through the Korean and Vietnam Wars until supplies were exhausted. Winchester briefly revived production in 1972 as a premium offering, and again from 1993 to 2006, but these later versions never matched original production volumes. The Heavy Duck Gun variant featured a 762 mm or 813 mm barrel with a 76 mm (3-inch) chamber for magnum loads.
