Winchester · Shotgun

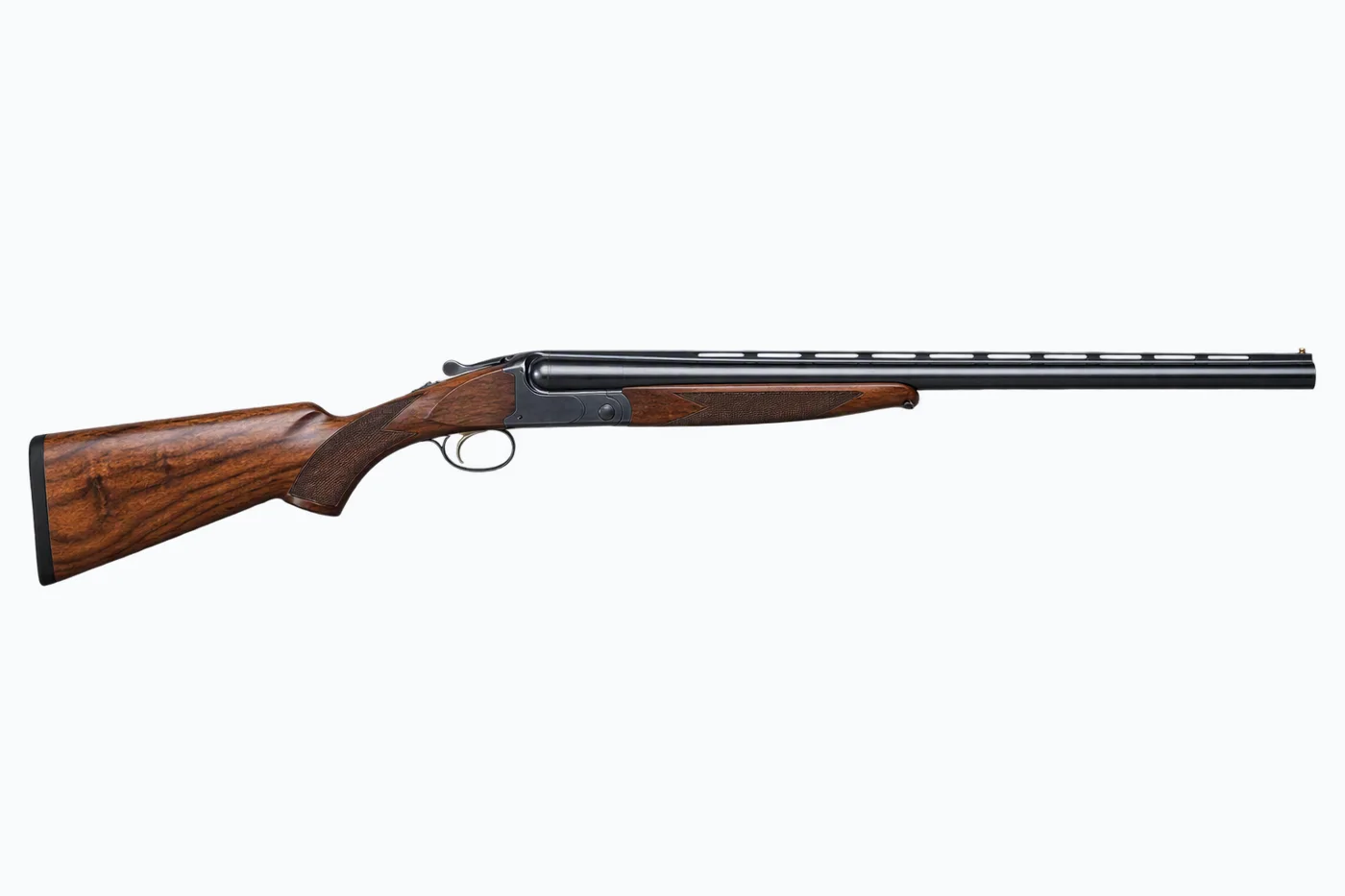

Winchester Model 21
Break action · 12 Gauge · introduced 1931
Also known as Model 21, Winchester 21
About the Winchester Model 21
The Winchester Model 21 is a premium American side-by-side double-barrel shotgun introduced in 1931. A hammerless boxlock with automatic ejectors and (on most guns) a single selective inertia trigger, it is renowned for the exceptional strength of its forged chrome-molybdenum steel frame and chopper-lump barrels joined by a dovetail rather than soft solder. Offered in 12, 16, 20 and 28 gauge and .410 bore across Standard, Tournament, Trap, Skeet, Custom, Grand American and Pigeon grades, it became the prestige American 'best gun.'
John Olin settled the American-versus-British best-gun debate with torture tests using overpressure 'blue pill' proof loads: a Model 21 fired 2,000 proof rounds with no measurable damage while competing guns failed in as few as around 300 shots, and its forged chrome-moly frame and dovetailed chopper-lump barrels made it legendarily strong.
Winchester Model 21 specifications
General
- Type
- Shotgun
- Action
- Break action
- Firing mechanism
- Hammer-fired
- Trigger
- Single stage
- Calibres
- 12 Gauge
- Magazine capacity
- 2 rounds
Dimensions
- Barrel length
- 711 mm (28.0 in)
- Weight (empty)
- 3.45 kg (7.61 lb)
Barrel
- Rifling
- None
Materials
- Barrel
- Steel
- Receiver / frame
- Steel
- Stock
- Wood
- Finish
- blued
Performance
- Muzzle velocity (typical)
- 400 m/s (1312 fps)
- Effective range
- 45 m
History
- Introduced
- 1931
- Discontinued
- 1959
- Production status
- Out of production
- Country of origin
- US
- Designer
- T.C. Johnson
Features
- Side by side barrels
- Boxlock action
- Single selective trigger
- Automatic ejectors
- Chopper lump barrels
- Vented rib
- Beavertail forend
Safety
- Automatic tang safety
Mass production ran 1931 to about 1959-1960; the Winchester Custom Shop continued small-batch production into the 1990s, and the design was later licensed to Connecticut Shotgun Manufacturing Co. Barrel lengths 26" to 32". Capacity is two shells, one per break-action barrel.
Similar models
Baikal IZh-58
Break action · 12 Gauge

Winchester 1897 Trench
Pump action · 12 Gauge

Winchester Model 12
Pump action · 12 Gauge

Winchester Model 1200
Pump action · 12 Gauge

Winchester Model 1300 Defender
Pump action · 12 Gauge 3 Inch Magnum

Winchester Model 1887
Lever action · 12 Gauge

Winchester Model 1893
Pump action · 12 Gauge

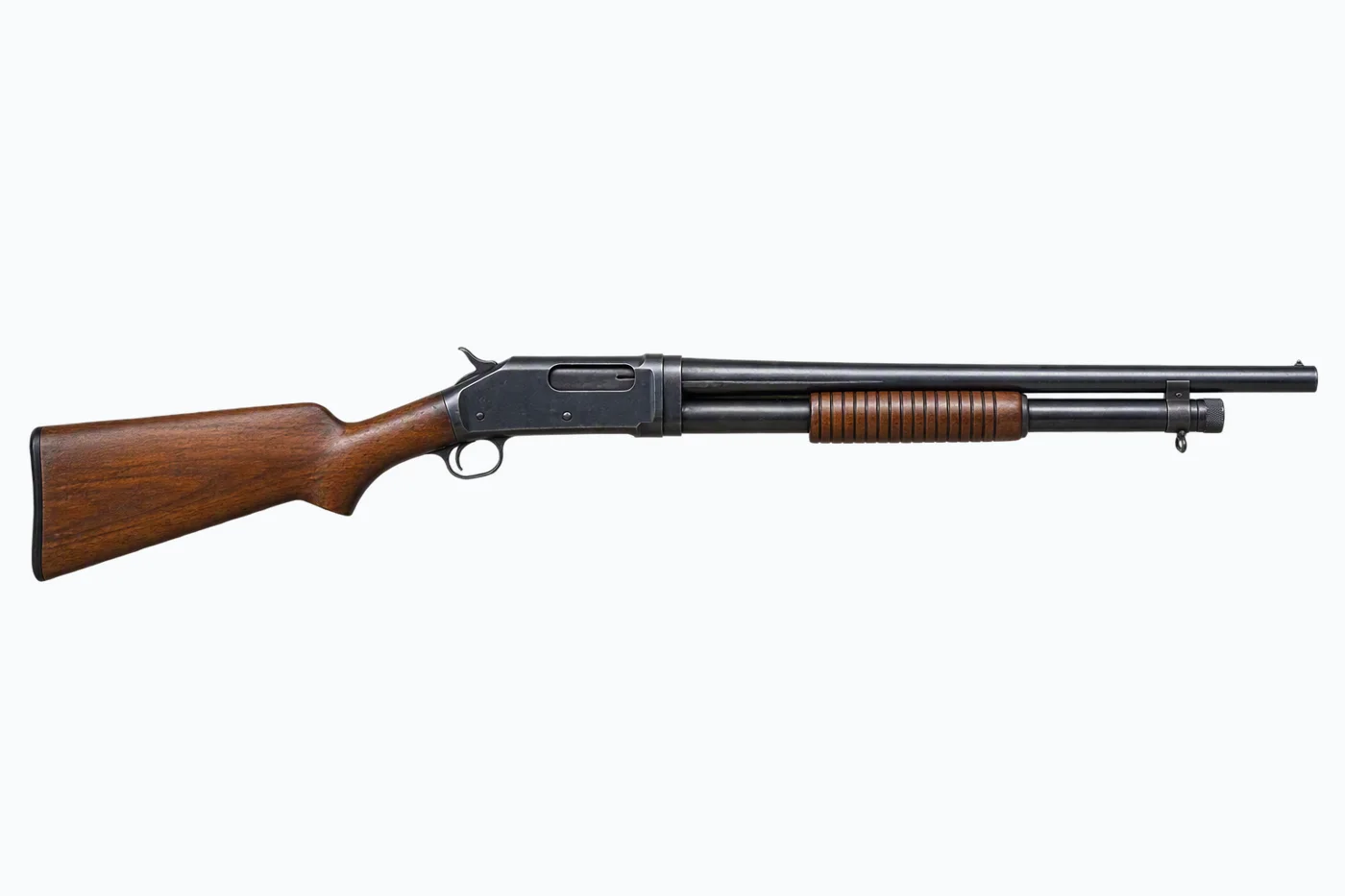

Winchester Model 1897
